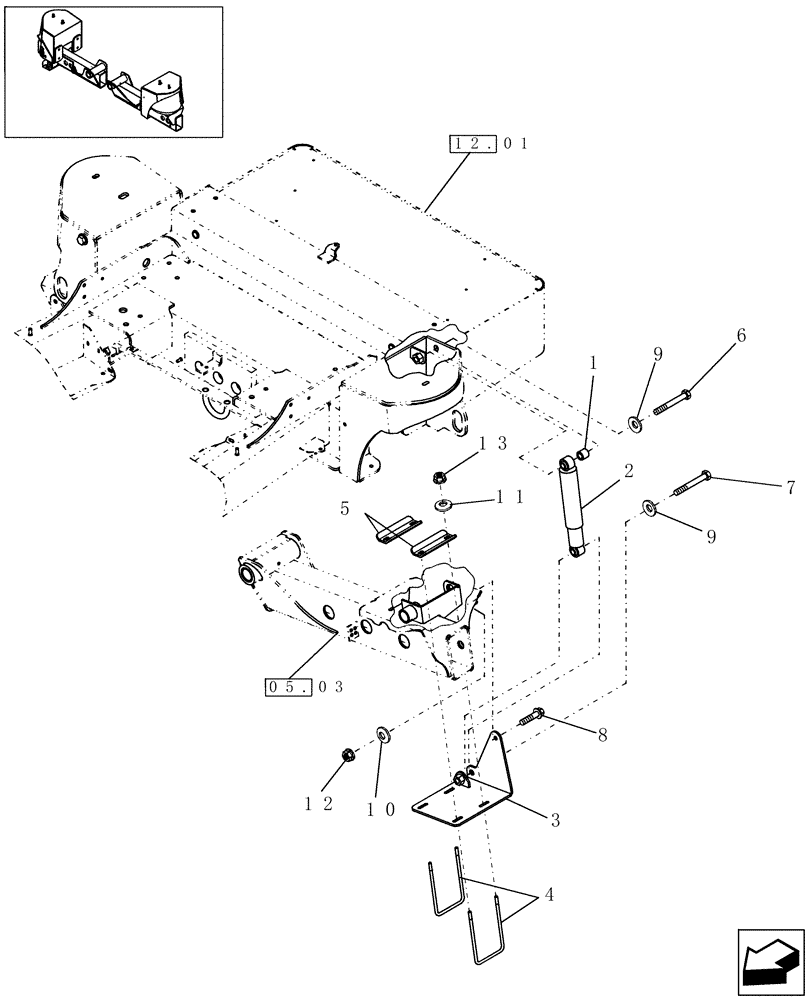

Запчасти Case IH WD2303 (05.04) - REAR SUSPENSION DAMPER (05) - REAR AXLE

1

87624311

SPACER

2шт.

2

87517433

SHOCK ABSORBER

2шт.

3

87627602

BRACKET

2шт.

4

87627435

U-BOLT

4шт.

5

87627685

CHANNEL

4шт.

6

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

2шт.

7

88747

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

2шт.

8

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

9

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

4шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

12

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

13

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.
