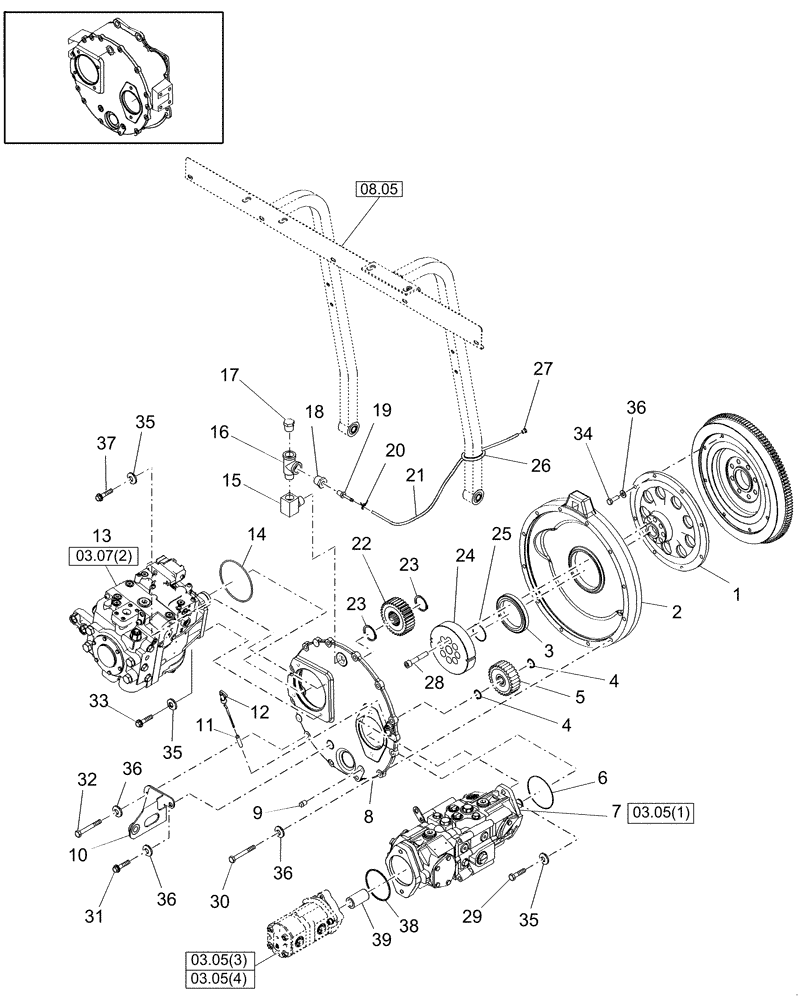

Запчасти Case IH WD2303 (03.10[1]) - FLYWHEEL AND GEARBOX (03) - TRANSMISSION

1

87589435

ADAPTER

1шт.

2

87590154

TERMINAL BOX

1шт.

3

87462383

SEAL

1шт.

4

9617878

SNAP RING,#98, Ext

2шт.

5

87600186

GEAR

29T

1шт.

6

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

1шт.

7

87038912

HYDRAULIC PUMP

Tandem, Sauer Danfoss MPT044D

1шт.

7

84257942R

REMAN-HYD PUMP

WD1903, WD2303, Does Not Include Gear Pump. Reman for New PN 87038912

1шт.

7

84257942C

CORE-HYDRAULIC PUMP

Return Number

1шт.

8

86974827

COVER

1шт.

9

80775

DRAIN PLUG,1/4" - 18 NPT

1шт.

10

87062046

SUPPORT ASSY.

1шт.

11

86522662

TUBE,9.52 mm OD x 68.00 mm L

1шт.

12

9635238

INDICATOR

1шт.

13

87013797

HYDRAULIC PUMP,100 CC

Piston, Standard Cab

1шт.

13

87013797R

REMAN-HYD PUMP

WD1903, WD2303, Both (9/07-)

1шт.

13

87013797C

CORE-HYDRAULIC PUMP

Return Number

1шт.

13

84363680

PUMP

Piston, Deluxe Cab

1шт.

13

84363680R

REMAN-HYD PUMP

WD1903, WD2303, Both (9/07)

1шт.

13

84363680C

CORE-HYDRAULIC PUMP

Return Number

1шт.

14

510828

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

15

88472

ELBOW,90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

16

509968

3 WAY CONNECTION

1шт.

17

509939

PLUG

1шт.

18

686790

REDUCER

1шт.

19

87016893

FITTING,1/4" Hose X 1/4" NPTF Beaded

1шт.

20

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

21

87280926

FUEL HOSE

1шт.

22

86521846

GEAR

32T

1шт.

23

11487

SNAP RING,#175, Ext

2шт.

24

87589845

GEAR

1шт.

25

86523082

O-RING,0.07" Thk x 1.989" ID, -33, Cl 5, 75 Duro

1шт.

26

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

27

854071

BREATHER

1шт.

28

61-35044

HEX SOC SCREW,1/2" - 13 x 2-3/4"

8шт.

29

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

30

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

11шт.

31

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

32

87015575

BOLT,Hex, M10 x 85mm, Cl 8.8

1шт.

33

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

3шт.

34

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

35

58102

WASHER

6шт.

36

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

21шт.

37

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

38

86537266

O-RING,3.237" ID x 3.442" OD x 0.103"

1шт.

39

86502304

COUPLING

1шт.
