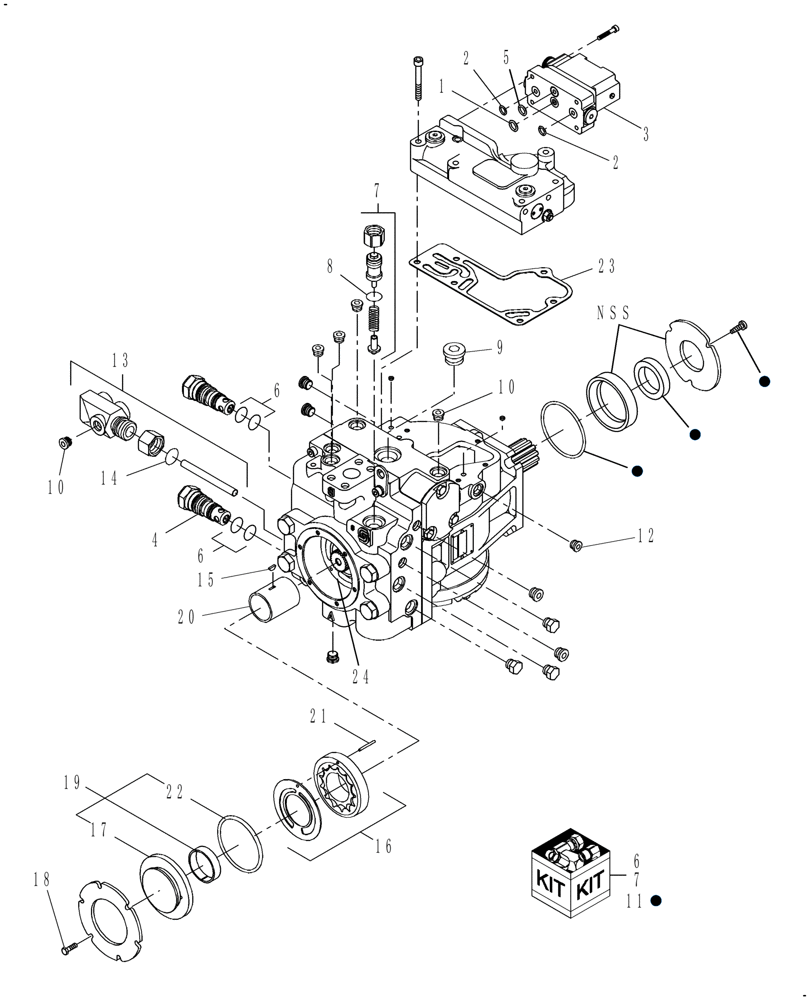

Запчасти Case IH WD2303 (03.07[2]) - PISTON PUMP COMPONENTS (03) - TRANSMISSION

87013797

HYDRAULIC PUMP,100 CC

Piston, 100 CC

1шт.

87013797R

REMAN-HYD PUMP

WD1903, WD2303, Both (9/07-)

1шт.

87013797C

CORE-HYDRAULIC PUMP

Return Number

1шт.

84363680

PUMP

Piston, 100 CC

1шт.

Deluxe Cab Only

1шт.

84363680R

REMAN-HYD PUMP

WD1903, WD2303

1шт.

84363680C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

86837702

O-RING,0.426" ID x 0.566" OD x 0.07"

1шт.

2

86837701

O-RING,0.364" ID x 0.504" OD x 0.07"

VIT 90 -012

2шт.

3

86556477

CONTROL VALVE

Pilot

1шт.

4

9805326

HYDRAULIC VALVE

Multi-Function

2шт.

5

86837697

O-RING,0.364" ID x 0.504" OD

VIT 75 -012

1шт.

6

9803117

KIT

2шт.

Components Not sold separately

1шт.

7

9803123

KIT

CPRV-PV20 BAR, Includes Ref. 8

1шт.

8

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

9841223

PLUG,1-1/16" - 12 ORB

1шт.

10

9625178

PLUG,9/16" - 18 ORB

1шт.

11

9803124

SEAL KIT

1шт.

12

166240

PLUG

3шт.

13

86556376

HYD CONNECTOR

Kit, Remote Fitting

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

80496

WOODRUFF KEY,#3, 1/8" x 1/2"

1шт.

16

86564550

PUMP

Charge

1шт.

17

86564548

BEARING HALF

Journal

1шт.

18

854-8035

SCREW,Hex Skt, M6 x 1 x 35mm, Cl 12.9

6шт.

19

87012443

COVER ASSY

Charge Pump

1шт.

20

87012445

COUPLING

Charge

1шт.

21

87012444

SPECIAL PIN

1шт.

22

86019294

O-RING,0.07" Thk x 3.739" ID, -44, Cl 6, 90 Duro

1шт.

23

86019296

GASKET

1шт.

24

84350104

PLATE

Valve

1шт.

Component of Piston Pump for Deluxe Cab Only

1шт.
