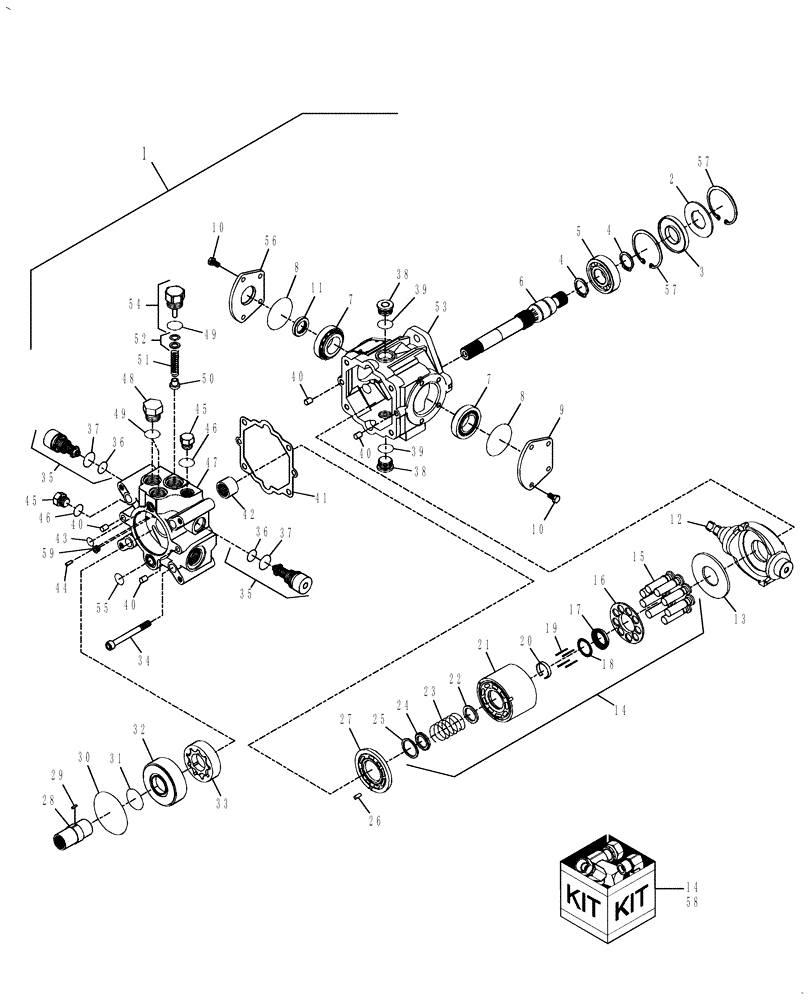

Запчасти Case IH WD2303 (03.05[4.1]) - TANDEM PUMP, REAR HALF, FROM YCG667001 (03) - TRANSMISSION

1

84520628

HYDROSTATIC PUMP

Tandem

1шт.

Tandem, WD1203 Only

1шт.

Includes: Ref. 03.05 (3.1)

1шт.

1

84257940

HYDRAULIC PUMP

Tandem, WD1203 Less Draper

1шт.

1

84257940R

REMAN-HYDROSTAT PUMP

Tandem, WD1203 Less Draper. Does Not Include Gear Pump

1шт.

1

84257940C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

86537277

WASHER

1шт.

3

86502227

SEAL,32.99mm ID x 72.31mm OD x 9.53mm Thk

Lip

1шт.

4

9671424

SNAP RING,#137, Ext

2шт.

5

80037203

BEARING ASSY

1шт.

6

84223667

SHAFT

Pump

1шт.

Improved, No Undercut, Can Be Used in Older Pumps to replace 86537268

1шт.

7

86537267

TAPERED BEARING,34.92mm ID x 80.17mm OD x 29.37mm W

2шт.

8

86539927

O-RING,2.612" ID x 2.81" OD x 0.099"

2.612 ID x .099 Thk

2шт.

9

86502299

COVER

Trunnion

1шт.

10

43232

BOLT,Hex, M8 x 16mm, Cl 10.9

8шт.

11

87012457

SEAL,23.7mm ID x 38.27mm OD x 6.4mm Thk

1шт.

12

87012455

SWASH PLATE

Variable

1шт.

13

86502277

THRUST PLATE

1шт.

14

87012454

HYD PUMP REPAIR KIT

Block, Cylinder, Includes: Ref. 15 - 25

1шт.

15

NSS

NOT SOLD SEPARAT

Piston

1шт.

16

86539899

RETAINER

Slipper

1шт.

17

86539900

GUIDE

Retaining, Slipper

1шт.

18

86539901

THRUST WASHER

1шт.

19

86539902

PIN,2.38mm OD x 29.46mm L

Slipper

4шт.

20

NSS

NOT SOLD SEPARAT

Retainer, Hold Down

1шт.

21

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

22

NSS

NOT SOLD SEPARAT

Washer

1шт.

23

NSS

NOT SOLD SEPARAT

Spring

1шт.

24

NSS

NOT SOLD SEPARAT

Washer

1шт.

25

86537282

CIRCLIP,#162, 1.701, Int, Spiral

1шт.

26

88180

LOCK PIN,4.76mm OD x 15.88mm L, Slotted

1шт.

27

87054549

FLOAT VALVE

Plate, CW

1шт.

28

86502291

COUPLING,22T

Tandem

1шт.

29

86502288

PIN,3.181mm OD x 9.53mm L

1шт.

30

511526

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

31

770414

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

1шт.

32

86502290

SPACER

Geroter

1шт.

33

86502289

ROTOR

1шт.

34

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

Screw, Cap, HSH, M10 x 90

4шт.

35

87056730

SEAL KIT

Valve, SCR, , Includes: Ref. 36 & 37

2шт.

H8040

1шт.

36

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

37

86505727

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

2шт.

38

163410

PLUG,1-1/16" - 12 ORB

Includes: Ref. 39

3шт.

39

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

40

87012464

SPECIAL PIN,9.499mm OD x 12.7mm OAL

Dowel, Knurled

4шт.

41

86502278

GASKET

1шт.

42

272850

NEEDLE BEARING,Needle, 25.39mm ID x 33.35mm OD x 25.4mm W

1шт.

43

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

44

88251

DOWEL,3/16" x 1/2"

1шт.

45

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 46

2шт.

46

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

47

86502293

CAP

1шт.

48

86512512

PLUG,7/8" - 14 ORB

Includes: Ref. 49

2шт.

49

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

50

86505723

POPPET

1шт.

51

86505721

SPRING

Compression

1шт.

52

86537393

KIT

Shim

1шт.

53

86537275

HOUSING

1шт.

54

86537387

PLUG

Charge Relief, Includes: Ref. 49

1шт.

55

86629585

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

56

87012456

COVER

Trunnion

1шт.

57

25954

SNAP RING,2.812", Int, #281

2шт.

58

86594279

HYD PUMP REPAIR KIT

Includes: Ref. 3, 8, 11, 30, 31, 41, 43, 49 & 55

1шт.

59

236622

PLUG,3/8" - 18 NPT

2шт.

H8060 & H8080 Only

1шт.

Used with 6 Cyl Tandem Pump Only

1шт.
