Запчасти Case IH WD2303 (03.05[3.1]) - TANDEM PUMP, FRONT HALF, FROM YCG667001 (03) - TRANSMISSION

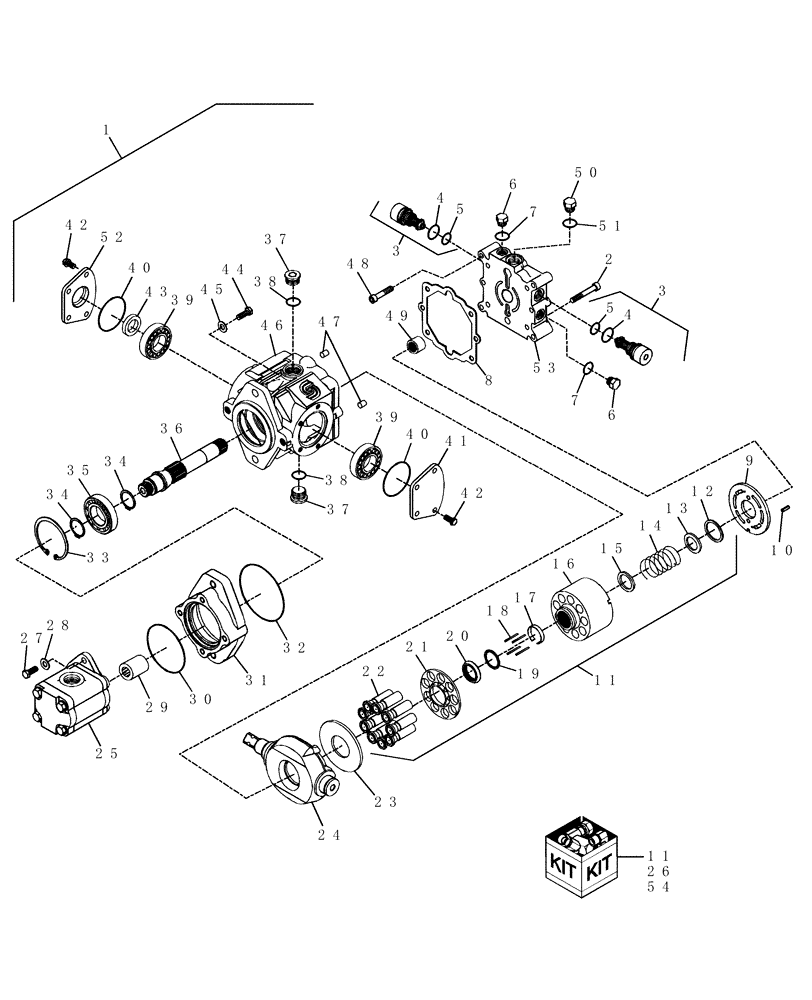

Схема запчастей Case IH WD2303 - (03.05[3.1]) - TANDEM PUMP, FRONT HALF, FROM YCG667001 (03) - TRANSMISSION
26
43
7
41
6
35
46
52
11
28
24
3
16
14
9
17
33
12
42
27
4
39
48
10
34
25
47
40
51
49
22
7
36
20
38
37
44
15
30
3
39
53
34
45
1
38
5
32
50
21
18
2
29
8
19
11
13
31
5
37
54
42
40
6
4
23

Артикул

Название

Примечание

Количество

1

84520628

HYDROSTATIC PUMP

Tandem

1шт.

Tandem, WD1203 Less Draper

1шт.

Includes: Fig. 03.05 (4.1)

1шт.

1

84257940

HYDRAULIC PUMP

Tandem, WD1203 Less Draper

1шт.

1

84257940R

REMAN-HYDROSTAT PUMP

Tandem, WD1203 Less Draper. Does Not Include Gear Pump

1шт.

1

84257940C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

87530644

SCREW,M10 x 55mm, Cl 8.8

4шт.

3

87056730

SEAL KIT

Valve, SCR; Includes: Ref. 4 & 5

2шт.

4

86505727

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

2шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

6

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 7

2шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

8

86502278

GASKET

1шт.

10

88180

LOCK PIN,4.76mm OD x 15.88mm L, Slotted

1шт.

11

87012454

HYD PUMP REPAIR KIT

Block, Cylinder, Includes: Ref. 12 - 22

1шт.

12

86537282

CIRCLIP,#162, 1.701, Int, Spiral

1шт.

13

NSS

NOT SOLD SEPARAT

Washer

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

15

86537279

WASHER

1шт.

16

NSS

NOT SOLD SEPARAT

Cylinder Block

1шт.

17

NSS

NOT SOLD SEPARAT

Retainer, Hold Down

1шт.

18

86539902

PIN,2.38mm OD x 29.46mm L

Slipper

4шт.

19

86539901

THRUST WASHER

1шт.

20

86539900

GUIDE

Slipper, Retaining

1шт.

21

86539899

RETAINER

Slipper

1шт.

22

NSS

NOT SOLD SEPARAT

Piston

1шт.

23

86502277

THRUST PLATE

1шт.

24

87012455

SWASH PLATE

Variable

1шт.

25

86617706

HYDRAULIC PUMP,6 CC

Gear

1шт.

H8040 Non Draper

1шт.

25

86617706R

REMAN-HYD PUMP

Gear, H8040 Non Draper

1шт.

25

86617706C

CORE-HYDRAULIC PUMP

Return Number

1шт.

26

86502309

SEAL KIT

Gear Pump, Contains 7 Different O-Rings and Seals; Services 86606917

1шт.

27

82039

HEX SOC SCREW,3/8" - 16 x 1 1/4"

2шт.

28

252687

WASHER,0.34" ID x 0.75" OD x 0.09" Thk

2шт.

29

86502304

COUPLING

1шт.

30

86537266

O-RING,3.237" ID x 3.442" OD x 0.103"

1шт.

31

86502303

ADAPTER

1шт.

32

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

33

25954

SNAP RING,2.812", Int, #281

1шт.

34

9671424

SNAP RING,#137, Ext

2шт.

35

37203

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

1шт.

36

86537274

SHAFT

1шт.

37

163410

PLUG,1-1/16" - 12 ORB

Includes: Ref. 38

1шт.

38

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

39

86537267

TAPERED BEARING,34.92mm ID x 80.17mm OD x 29.37mm W

2шт.

40

86594279

HYD PUMP REPAIR KIT

2.612 ID x .099 Thk

2шт.

41

86502299

COVER

Trunnion

1шт.

42

43232

BOLT,Hex, M8 x 16mm, Cl 10.9

8шт.

43

87012457

SEAL,23.7mm ID x 38.27mm OD x 6.4mm Thk

1шт.

44

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

45

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

46

86537275

HOUSING

1шт.

47

87012464

SPECIAL PIN,9.499mm OD x 12.7mm OAL

2шт.

48

14420921

HEX SOC SCREW,M10 x 65mm, Cl 8.8

4шт.

49

272850

NEEDLE BEARING,Needle, 25.39mm ID x 33.35mm OD x 25.4mm W

1шт.

50

86512512

PLUG,7/8" - 14 ORB

Includes: Ref. 51

1шт.

51

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

52

87012456

COVER

Trunnion

1шт.

53

86537273

CAP

End

1шт.

54

86594279

HYD PUMP REPAIR KIT

Includes: 8, 30, 32, 40 & 43

1шт.

Выбрано товаров: 61
