Запчасти Case IH WD2303 (03.05[3]) - TANDEM PUMP, FRONT HALF (03) - TRANSMISSION

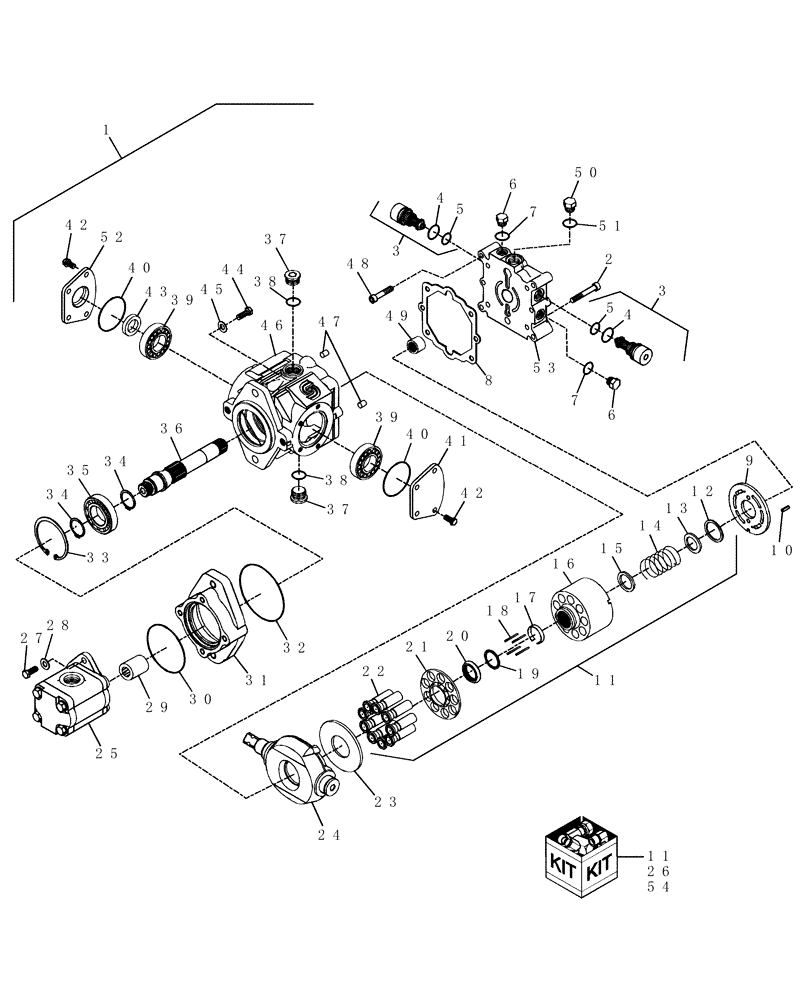

Схема запчастей Case IH WD2303 - (03.05[3]) - TANDEM PUMP, FRONT HALF (03) - TRANSMISSION
47
5
23
11
28
2
11
6
24
19
51
35
34
13
45
10
48
46
53
32
1
29
22
36
43
30
41
40
5
16
37
38
3
42
17
38
14
6
44
21
4
4
34
20
26
15
54
39
18
37
33
3
42
27
52
12
31
7
50
25
9
8
7
39
49
40

Артикул

Название

Примечание

Количество

1

87038912

HYDRAULIC PUMP

Tandem

1шт.

Includes: Fig. 03.05 (4)

1шт.

WD1903 & WD2303 Only

1шт.

1

84257942R

REMAN-HYD PUMP

WD1903, WD2303, Does Not Include Gear Pump.

1шт.

1

84257942C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

84257942

HYDRAULIC PUMP

Tandem, Start Serial: YBG663918

1шт.

WD1903 & WD2303 Only

1шт.

1

84257942R

REMAN-HYD PUMP

WD1903, WD2303, Both ASN YBG663918, Does Not Include Gear Pump

1шт.

1

84257942C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87038911

HYDRAULIC PUMP

Tandem

1шт.

WD1203 Only

1шт.

1

84257940R

REMAN-HYDROSTAT PUMP

Tandem, WD1203 Only. Does Not Include Gear Pump

1шт.

1

84257940C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

84257940

HYDRAULIC PUMP

Tandem, WD1203 Only, Start Serial: YBG663911

1шт.

1

84257940R

REMAN-HYDROSTAT PUMP

Tandem, WD1203 Only. Does Not Include Gear Pump

1шт.

1

84257940C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Screw, Cap, HSH, M10 x 55

4шт.

3

86539666

KIT

Valve, SCR, Includes: Ref. 4 & 5

2шт.

4

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

6

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 7

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

8

86502278

GASKET

End Cap

1шт.

9

87054550

FLOAT VALVE

Plate, CCW

1шт.

10

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

11

87012454

HYD PUMP REPAIR KIT

Block, Cylinder, Includes: Ref. 12 - 22

1шт.

12

D38748

SNAP RING,#162, 1.701, Int, Spiral

1шт.

13

NSS

NOT SOLD SEPARAT

Washer

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

15

NSS

NOT SOLD SEPARAT

Washer

1шт.

16

NSS

NOT SOLD SEPARAT

Cylinder Block

1шт.

17

NSS

NOT SOLD SEPARAT

Retainer, Hold Down

1шт.

18

86539902

PIN,2.38mm OD x 29.46mm L

Slipper

4шт.

19

86539901

THRUST WASHER

1шт.

20

86539900

GUIDE

Slipper, Retaining

1шт.

21

86539899

RETAINER

Slipper

1шт.

22

NSS

NOT SOLD SEPARAT

Piston

1шт.

23

86502277

THRUST PLATE

1шт.

24

87012455

SWASH PLATE

1шт.

25

86617706

HYDRAULIC PUMP,6 CC

Gear

1шт.

Used with Tandem Pump 87611873

1шт.

WD1903 & WD2303 Only

1шт.

25

86617706R

REMAN-HYD PUMP

Used with Tandem Pump 87611873, WD1903 & WD2303 Only

1шт.

25

86617706C

CORE-HYDRAULIC PUMP

Return Number

1шт.

25

86606917

HYDRAULIC PUMP,10.8 CC

Gear

1шт.

WD1203 Only

1шт.

Used with Tandem Pump 87038911

1шт.

25

86606917R

REMAN-HYD PUMP

Used with Tandem Pump 87038911, WD1203 Only

1шт.

25

86606917C

CORE-HYDRAULIC PUMP

Return Number

1шт.

26

86502309

SEAL KIT

Gear Pump, Contains 7 Different O-Rings and Seals

1шт.

WD1203 Only

1шт.

27

61-33820

HEX SOC SCREW,3/8"-16 x 1 1/4"

2шт.

28

252687

WASHER,0.34" ID x 0.75" OD x 0.09" Thk

2шт.

29

86502304

COUPLING

1шт.

30

86537266

O-RING,3.237" ID x 3.442" OD x 0.103"

1шт.

31

86502303

ADAPTER

Flange

1шт.

32

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

33

100-21281

SNAP RING,2.812", Int, #281

1шт.

34

100-11137

SNAP RING,#137, Ext

2шт.

35

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

1шт.

36

86537274

SHAFT

1шт.

37

163410

PLUG,1-1/16" - 12 ORB

Includes: Ref. 38

1шт.

38

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

39

241590A1

BEARING ASSY

2шт.

40

86539927

O-RING,2.612" ID x 2.81" OD x 0.099"

2.612" ID x .099" Thk

2шт.

41

86502299

COVER

Trunnion

1шт.

42

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

8шт.

43

87012457

SEAL,23.7mm ID x 38.27mm OD x 6.4mm Thk

1шт.

44

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

45

NSS

NOT SOLD SEPARAT

Washer

2шт.

46

86537275

HOUSING

1шт.

47

87012464

SPECIAL PIN,9.499mm OD x 12.7mm OAL

2шт.

48

NSS

NOT SOLD SEPARAT

Screw, Cap, HSH, M10 x 65

4шт.

49

F62094

NEEDLE BEARING

Needle

1шт.

50

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 51

1шт.

51

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

52

87012456

COVER

Trunnion

1шт.

53

86537273

CAP

End

1шт.

54

86594279

HYD PUMP REPAIR KIT

Includes: 8, 30, 32, 40 & 43

1шт.

For Complete Listing of Kit, see Fig. 03.05(5)

1шт.

Выбрано товаров: 80
