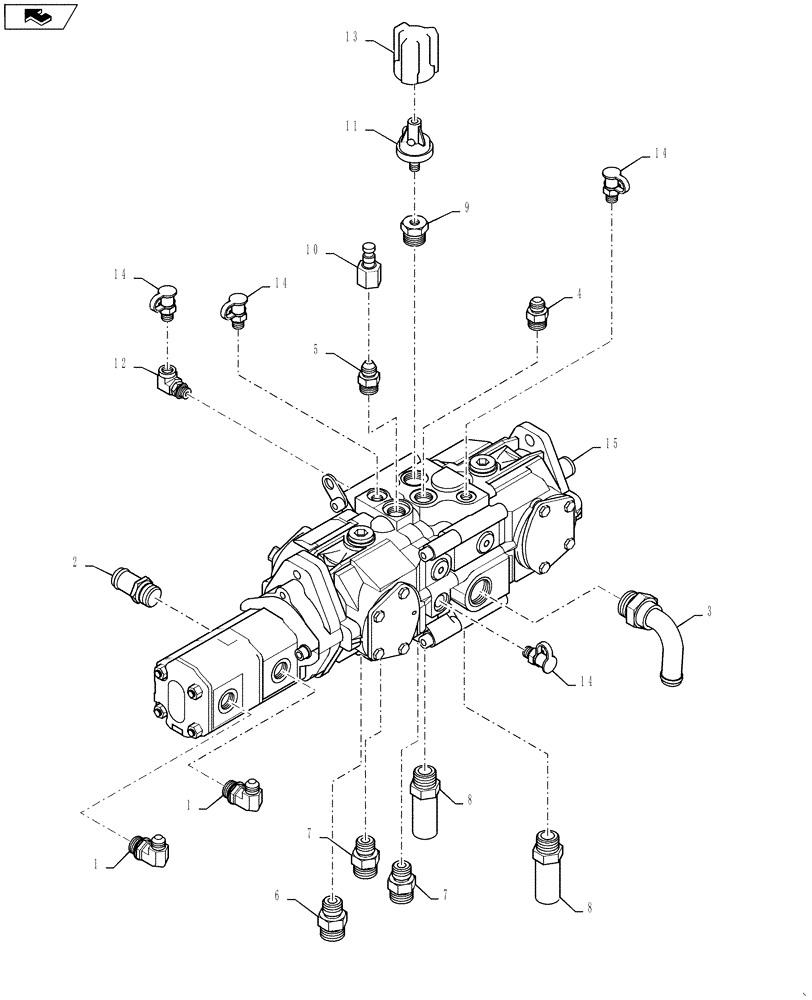

Запчасти Case IH WD2303 (03.05[2.1]) - TANDEM PUMP FITTINGS, FROM YCG667001 (03) - TRANSMISSION

1

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

2шт.

2

87027931

NIPPLE

1шт.

3

769309

HYD CONNECTOR

1шт.

4

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

5

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

3шт.

6

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

7

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

8

86978169

HYD CONNECTOR

2шт.

9

86527299

BUSHING

1шт.

10

192834A1

COUPLING

1шт.

11

86534287

PRESSURE SWITCH

1шт.

12

86836953

ELBOW,9/16" - 18 ORB x 9/16" - 18 ORB

1шт.

13

86503171

COVER

1шт.

14

87026252

ASSEMBLY

4шт.

15

84520628

HYDROSTATIC PUMP

Draper

1шт.

15

84257940

HYDRAULIC PUMP

Non-Draper

1шт.

15

84257940R

REMAN-HYDROSTAT PUMP

Non-Draper. Does Not Include Gear Pump

1шт.

15

84257940C

CORE-HYDROSTAT PUMP

Return Number

1шт.
