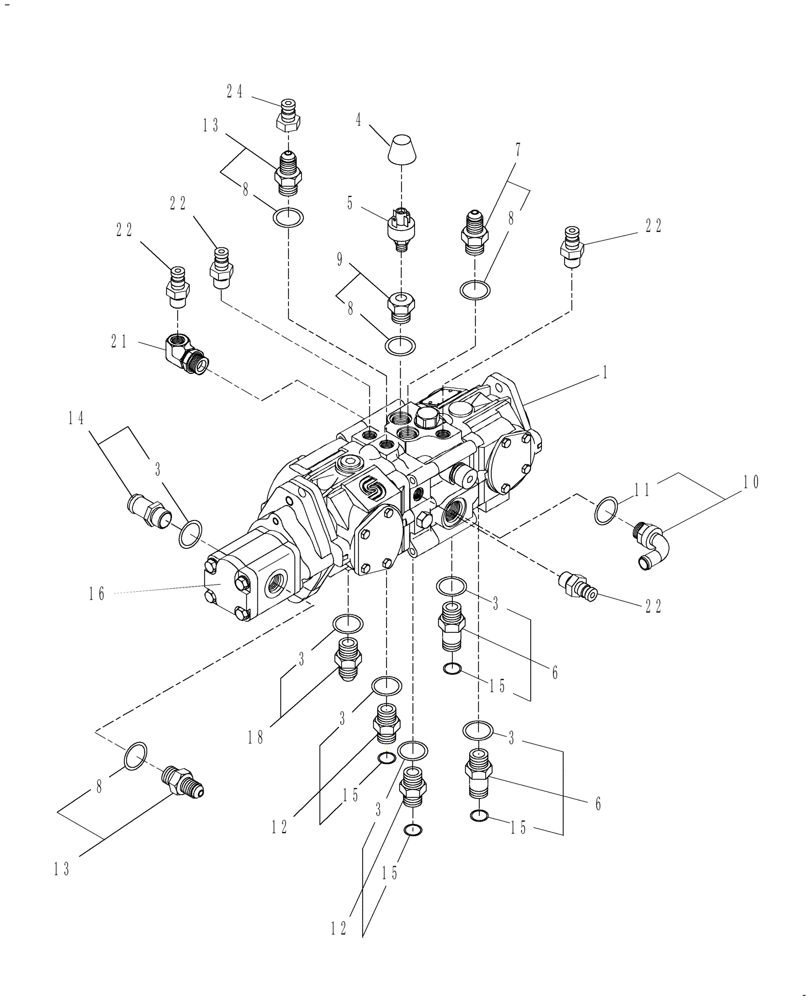

Запчасти Case IH WD2303 (03.05[2]) - TANDEM PUMP FITTINGS (03) - TRANSMISSION

1

87038911

HYDRAULIC PUMP

Includes: Ref. 16

1шт.

1

84257940R

REMAN-HYDROSTAT PUMP

Does Not Include Ref.16 Gear Pump

1шт.

1

84257940C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

84257940

HYDRAULIC PUMP

Replaces 87038911

1шт.

1

84257940R

REMAN-HYDROSTAT PUMP

Does Not Include Ref.16 Gear Pump

1шт.

1

84257940C

CORE-HYDROSTAT PUMP

Return Number

1шт.

3

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

5шт.

4

86503171

COVER

1шт.

5

86534287

PRESSURE SWITCH

1шт.

6

86978169

HYD CONNECTOR

.75" x 3.76"

2шт.

7

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

8

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3шт.

9

86527299

BUSHING

1шт.

10

87027931

NIPPLE

90 Deg.

1шт.

11

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

3/4" Tube

2шт.

13

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

14

87027931

NIPPLE

1шт.

15

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

16

86606917

HYDRAULIC PUMP,10.8 CC

1шт.

18

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

21

86836953

ELBOW,9/16" - 18 ORB x 9/16" - 18 ORB

1шт.

22

87026252

ASSEMBLY

Includes: Dust Cap & O-Ring Which are not serviced separately

4шт.

23

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

24

192834A1

COUPLING

1шт.
