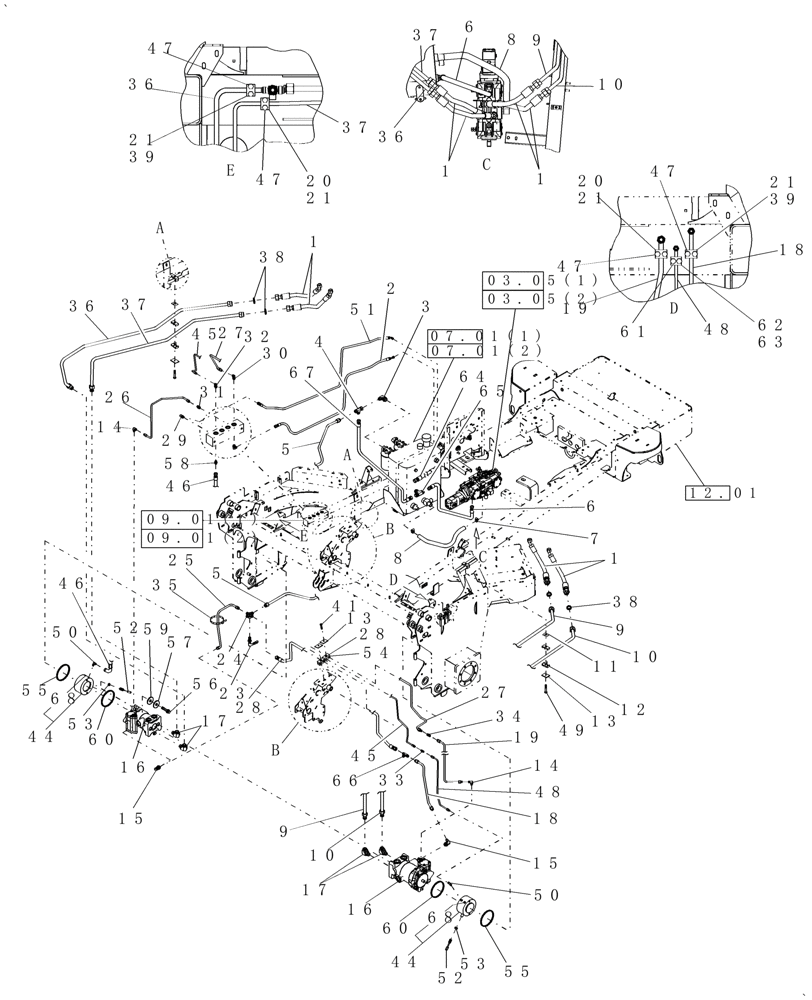

Запчасти Case IH WD2303 (03.04[1]) - HYDRAULIC GROUND DRIVE (03) - TRANSMISSION

1

86705061

HOSE ASSY.,19.05mm ID x 533.4mm L, SAE 100R13

1-1/4" OD x 3/4" ID x 21" Long

4шт.

2

87017544

HOSE ASSY.

21/32" OD x 3/8" ID x 60-1/2" Long

1шт.

3

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1шт.

4

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

5

87011227

HYD TUBE

3/4" OD x 5/8" ID x 53" Long

1шт.

6

87486203

HYDRAULIC HOSE

1-1/4" OD x 3/4" ID x 36" Long

1шт.

WD1903 & WD2303 Only

1шт.

6

87024632

HOSE,15.88 mm ID x 469.90 mm, SAE 30R2

1шт.

WD1203 Only

1шт.

P.I.N. Y8N661151 & Prior

1шт.

6

87476142

SWITCH

5/8" ID x 24" Long

1шт.

WD1203 Only

1шт.

P.I.N. Y8G661152 & After

1шт.

7

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

WD1903 & WD2303 Only

1шт.

7

87301358

HOSE CLAMP,1.00/1.875 HD Worm

1шт.

WD1203 Only

1шт.

8

87027895

HOSE,1.25" ID x 32.00", SAE 100R4

1шт.

WD1903 & WD2303 Only

1шт.

8

87573355

HOSE

1-5/8" OD x 1" ID x 48" Long

1шт.

WD1203 Only

1шт.

9

86638705

TUBE,25.40 mm OD

1" OD x 3/4" ID x 79" Long

1шт.

WD1903 & WD2303 Only

1шт.

9

86974879

HYD TUBE

1" OD x 3/4" ID x 92" Long

1шт.

WD1203 Only

1шт.

10

86638706

TUBE,25.40 mm OD

1" OD x 3/4" ID x 71" Long

1шт.

WD1903 & WD2303 Only

1шт.

10

86974878

HYD TUBE,19.30 mm ID x 25.40 mm OD

1" OD x 3/4" ID x 85" Long

1шт.

WD1203 Only

1шт.

11

86564909

WASHER

2шт.

12

86900725

CLAMP

2шт.

13

87053042

PLATE

4шт.

WD1903 & WD2303 Only

1шт.

13

87053042

PLATE

5шт.

WD1203 Only

1шт.

14

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

2шт.

15

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

2шт.

16

87349714

HYDRAULIC MOTOR

2шт.

87349714R

REMAN-HYD MOTOR

WD1203, WD1903, WD2303,

2шт.

87349714C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

17

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Incl 17A

4шт.

17a

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17a

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

18

86974211

HYD TUBE

5/8" OD x 1/2" ID x 26" Long

1шт.

19

87011231

HYD TUBE,0.625" OD

15/32" OD x 3'8" ID x 30" Long

1шт.

20

86900724

CLAMP

2шт.

21

86900726

COVER

4шт.

22

16985

TEE,7/8"-14, 37 Degree

1шт.

WD1903 & WD2303 Only

1шт.

23

86544823

TEMPERATURE SWITCH

Hyd. Oil Temperature, 225°F

1шт.

24

86978785

CROSS

1шт.

25

86974206

TUBE,15.90 mm OD

5/8" OD x 1/2" ID x 33" Long

1шт.

26

87011232

HYD TUBE

1/2" OD x 3/8" ID x 44" Long

1шт.

27

87550028

TUBE

1/2" OD x 3/8" ID x 75" Long

1шт.

28

86979928

HOSE,12.70 mm ID x 2387.60 mm, SAE 100R1 Type AT, SAE 100R3

1шт.

29

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

30

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

31

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

32

84313

ELBOW,45 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

1шт.

33

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

34

128820

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

1шт.

WD1903 & WD2303 Only

1шт.

34

128822

UNION,3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

WD1203 Only

1шт.

35

86566989

CABLE TIE,208mm L

CABLE STRAP

2шт.

36

86638704

TUBE,25.40 mm OD

1" OD x 3/4" OD x 87" Long

1шт.

WD1903 & WD2303 Only

1шт.

36

86974876

HYD TUBE

1" OD x 3/4" OD x 99" Long

1шт.

WD1203 Only

1шт.

37

86638703

TUBE,25.40 mm OD

1" OD x 3/4" OD x 75"

1шт.

WD1903 & WD2303 Only

1шт.

37

86974877

HYD TUBE,19.30 mm ID x 25.40 mm OD

1" OD x 3/4" OD x 87" Long

1шт.

WD1203 Only

1шт.

38

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

39

87040663

CLAMP

2шт.

40

86563609

CLAMP

1шт.

41

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

44

87631994

BRAKE ASSY.

2шт.

45

87550029

HYD TUBE,7.035 mm ID x 9.525 mm OD x 1883, 246.7 mm L

3/8" OD x 9/32" ID x 79" Long

1шт.

46

87017787

HOSE ASSY.

11/16" x 3/8" ID x 35" Long

1шт.

47

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

8шт.

48

87552527

HYD TUBE,7.045 mm ID x 9.525 mm OD x 375, 300 mm L

1шт.

49

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

2шт.

50

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

2шт.

51

86900546

HOSE ASSY.

5/8" OD x 3/8" ID x 64" Long

1шт.

52

9825943

SENSOR

2шт.

53

87313

JAM NUT,Jam, 3/4"-16, G2

2шт.

54

87105732

CLAMP

1шт.

55

9840590

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

2шт.

56

87041225

BOLT

4шт.

57

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

58

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

59

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

60

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.

61

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

62

87022336

PLATE

1шт.

63

87603907

CLAMP

1шт.

64

87035357

HOSE ASSY.

1шт.

WD1203 Only

1шт.

P.I.N. Y8N661151 & Prior

1шт.

65

80015694

TEE,1 1/16"-12 37 Degree

1шт.

WD1203 Only

1шт.

P.I.N. Y8N661151 & Prior

1шт.

65

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

WD1203 Only

1шт.

P.I.N. Y8G661152 & After

1шт.

66

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

WD1203 Only

1шт.

67

87022628

TUBE,19.05 mm OD

3/4" OD x 5/8" ID x 56" Long

1шт.

WD1203 Only

1шт.

68

87055273

SCREW,5/16" x 1 17/64"

Bleeder

2шт.

69

87055272

KIT

O-Ring, for Ref. 68

2шт.
