Запчасти Case IH WD2303 (18.33) - DIA., AUXILIARY DRIVE, HYD MERGER, ENGINE MOUNTED - TIER III (18) - ACCESSORIES

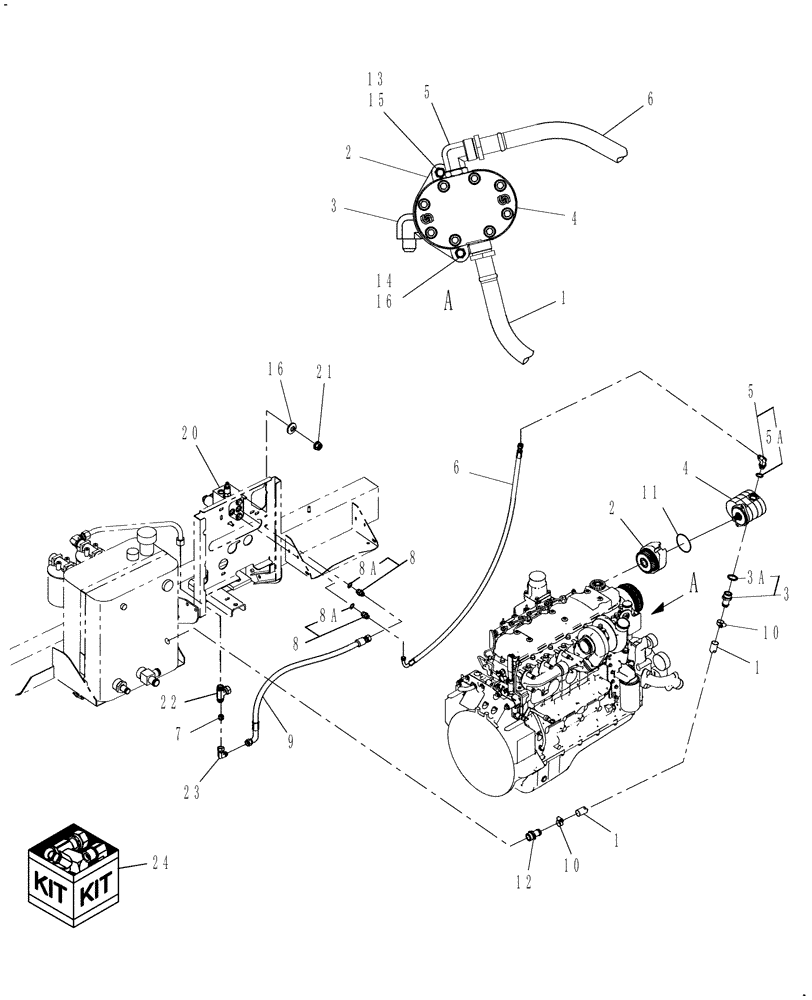

Схема запчастей Case IH WD2303 - (18.33) - DIA., AUXILIARY DRIVE, HYD MERGER, ENGINE MOUNTED - TIER III (18) - ACCESSORIES
9
1
3
11
6
a
5
1
24
16
a
12
8
4
15
8
2
22
6
23
7
5a
3
21
14
10
20
8a
8a
3a
13
4
5
16
1
2
10

Артикул

Название

Примечание

Количество

1

87032237

HOSE,1.00" ID x 44.00", SAE 100R4

1шт.

2

84272202

PTO

1шт.

3

87027931

NIPPLE

Includes: Ref. 3

1шт.

3a

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

87050689

HYDRAULIC PUMP,22.8 CC

22 cc

1шт.

5

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Includes: Ref. 5a

1шт.

5a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

84130833

HOSE

1шт.

7

87648720

REDUCER,3/4" - 16 JIC x 1-11/16" - 12 JIC

1шт.

8

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Includes: Ref. 8a

2шт.

8a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

9

84130830

HOSE

Connector to T Port on Item 20

1шт.

10

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

11

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

12

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

13

86511099

HEX SOC SCREW,M12 x 50mm, Cl 12.9, Full Thd

2шт.

14

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

20

84231477

CONTROL VALVE

1шт.

21

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

22

86513017

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1шт.

23

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

24

87711016

DIA KIT, HARVESTER

Auxiliary Hyd. Drive for Crop Merger, Includes: Instructions

1шт.

Выбрано товаров: 24
