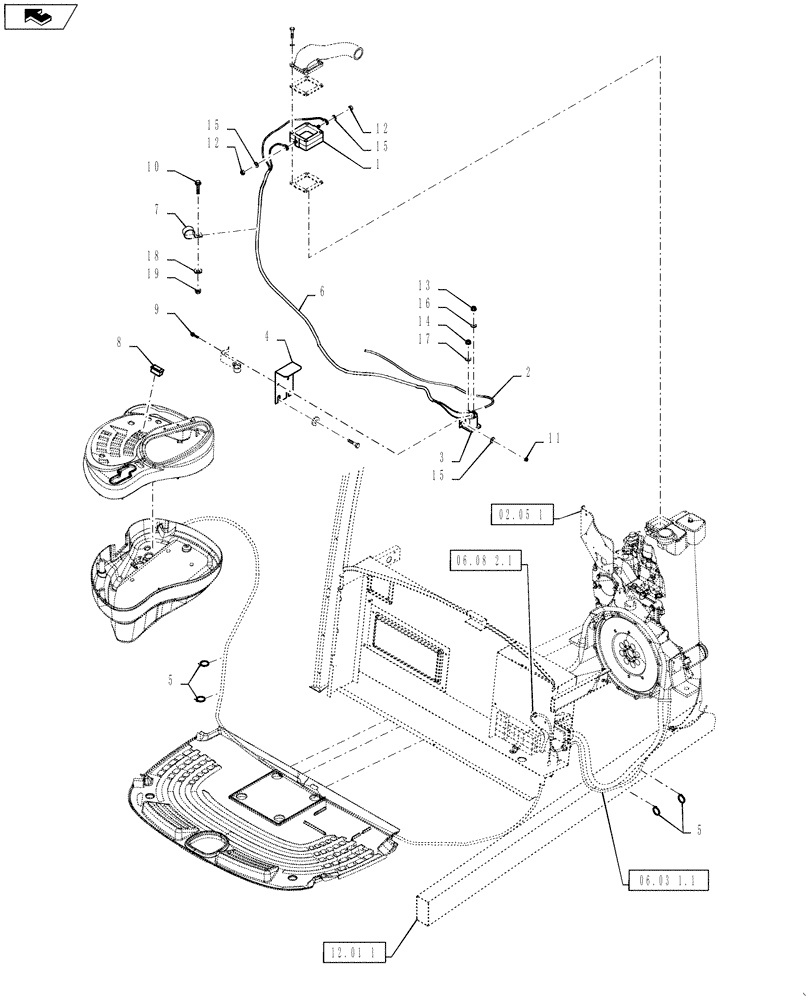

Запчасти Case IH WD2303 (18.14[2.2]) - COLD START, FROM YCG667001 (18) - ACCESSORIES

1

82017872

HEATER

1шт.

2

87042839

ELECTRIC CABLE

1шт.

3

87406968

SOLENOID SWITCH

1шт.

4

87043023

BRACKET

1шт.

5

86566989

CABLE TIE,208mm L

10шт.

6

87039571

HARNESS

1шт.

7

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

86631307

SWITCH

1шт.

9

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

10

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

11

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

12

353308

NUT,M6 x 1.0, Cl 8

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

87825

NUT,#10-32

2шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

17

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

19

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.
