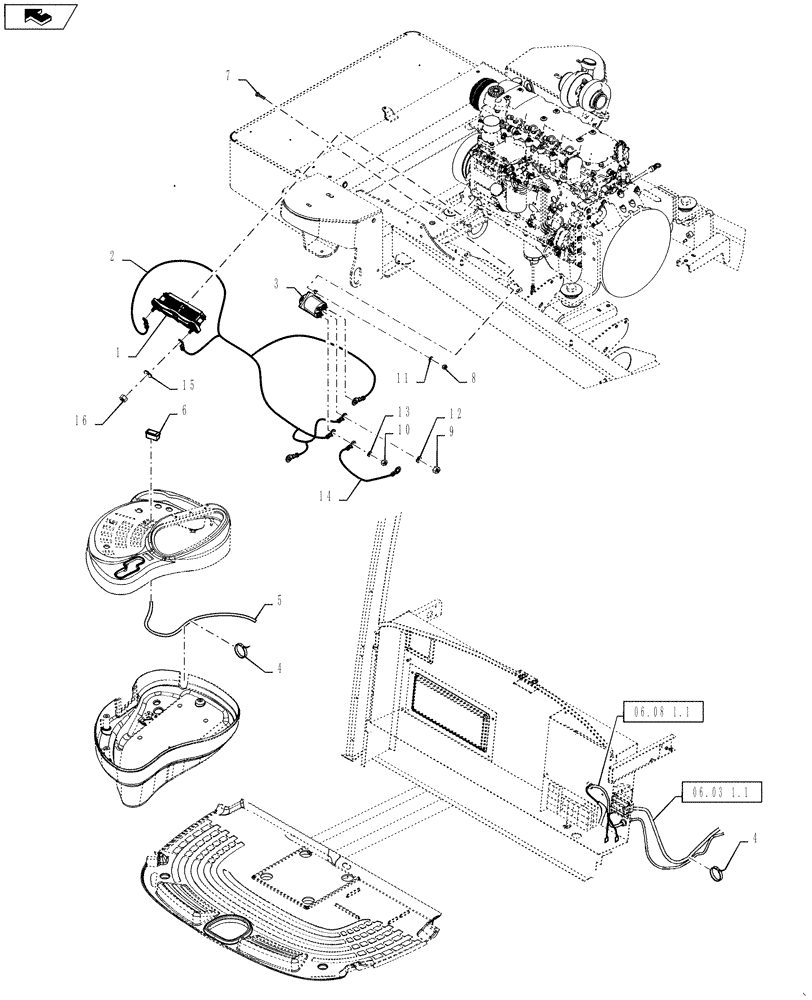

Запчасти Case IH WD2303 (18.14[1.1]) - COLD START, FROM YCG667001 (18) - ACCESSORIES

1

87541231

UNIT HEATER

Includes: Hardware

1шт.

2

87389491

CABLE

1шт.

3

87406968

SOLENOID SWITCH

1шт.

4

86566989

CABLE TIE,208mm L

10шт.

5

87389493

WIRE HARNESS

1шт.

6

86631307

SWITCH

1шт.

7

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

8

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

87825

NUT,#10-32

2шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

13

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

14

87389492

POS BATTERY CABLE

1шт.

15

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

16

86511444

FLANGE NUT,Hex, M6 x 1

2шт.
