Запчасти Case IH WD2303 (18.14[1]) - COLD START KIT (18) - ACCESSORIES

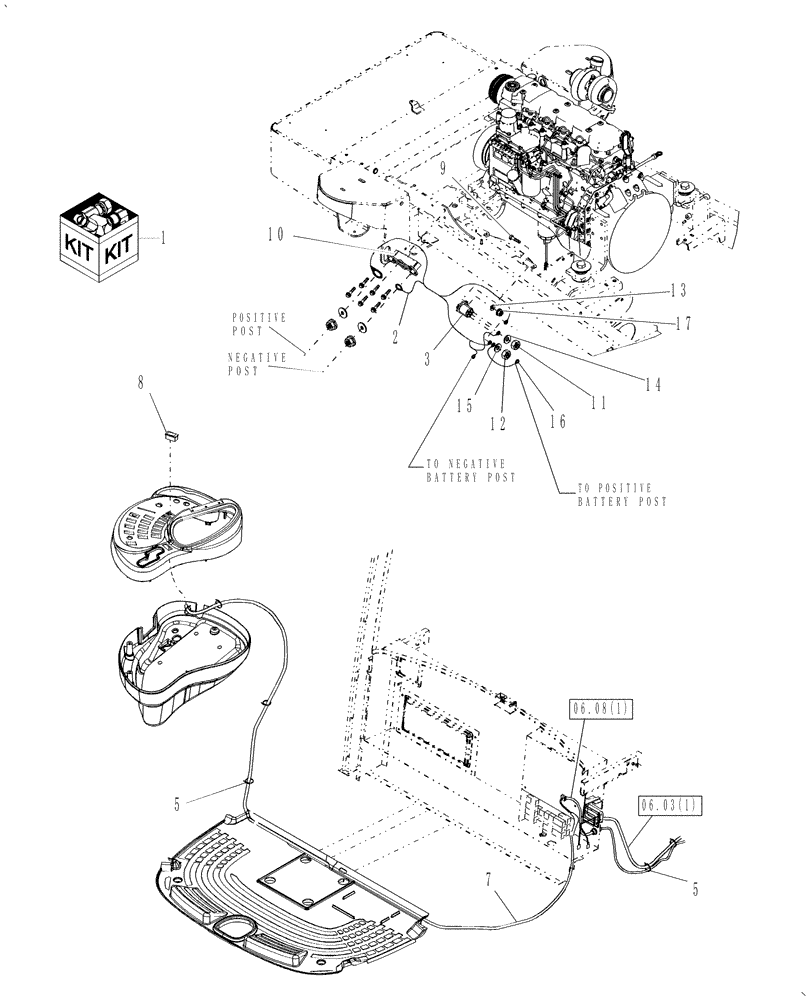

Схема запчастей Case IH WD2303 - (18.14[1]) - COLD START KIT (18) - ACCESSORIES
battery post
12
15
positive
3
post
8
1
17
7
to negative
5
2
06.08(1)
06.03(1)
14
5
9
post
16
10
battery post
negative
11
to positive
13

Артикул

Название

Примечание

Количество

1

87629024

DIA KIT, HARVESTER

Cold Start, Includes: Ref. 2 - 17 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

87389491

CABLE

1шт.

3

87406968

SOLENOID SWITCH

1шт.

4

87043023

BRACKET

1шт.

5

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

6

87389493

WIRE HARNESS

1шт.

7

87041200

HARNESS

1шт.

8

86631307

SWITCH

1шт.

9

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

10

87541231

UNIT HEATER

Includes: Hardware

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

87825

NUT,#10-32

2шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

15

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

16

87389492

POS BATTERY CABLE

1шт.

17

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

Выбрано товаров: 18
