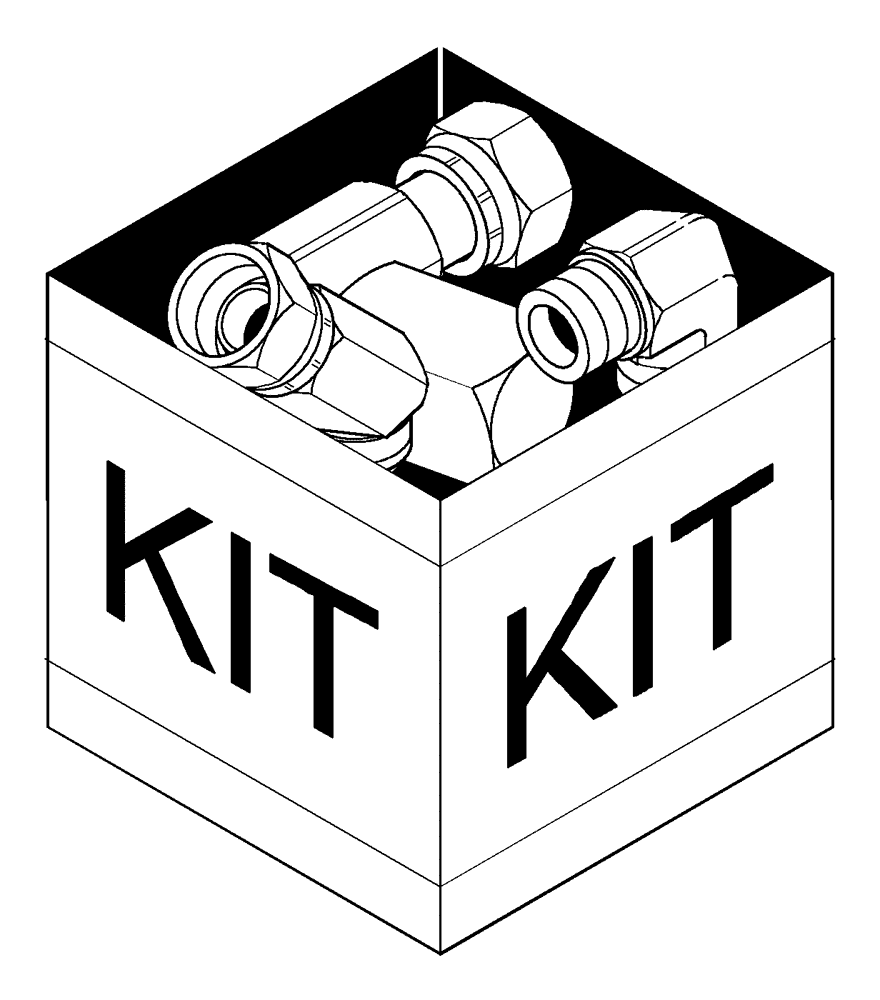

Запчасти Case IH WD2303 (18.13) - FUEL FILTER/WATER SEPARATOR KIT (18) - ACCESSORIES

1

87470072

SERVICE KIT

Fuel Filter/Water Separator, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

87346728

FUEL FILTER

1шт.

3

217-341

FITTING,90 Degree Elbow, 3/8" Hose Barb x 3/4" - 16 Male ORB

2шт.

4

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

4шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

7

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

8

87620129

BRACKET

1шт.

9

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

6шт.

10

221-1109

PIPE,Nipple, 1/8" NPT x 2"

1шт.

11

86561591

FLEXIBLE HOSE

1шт.

12

84135833

BRACKET

1шт.
