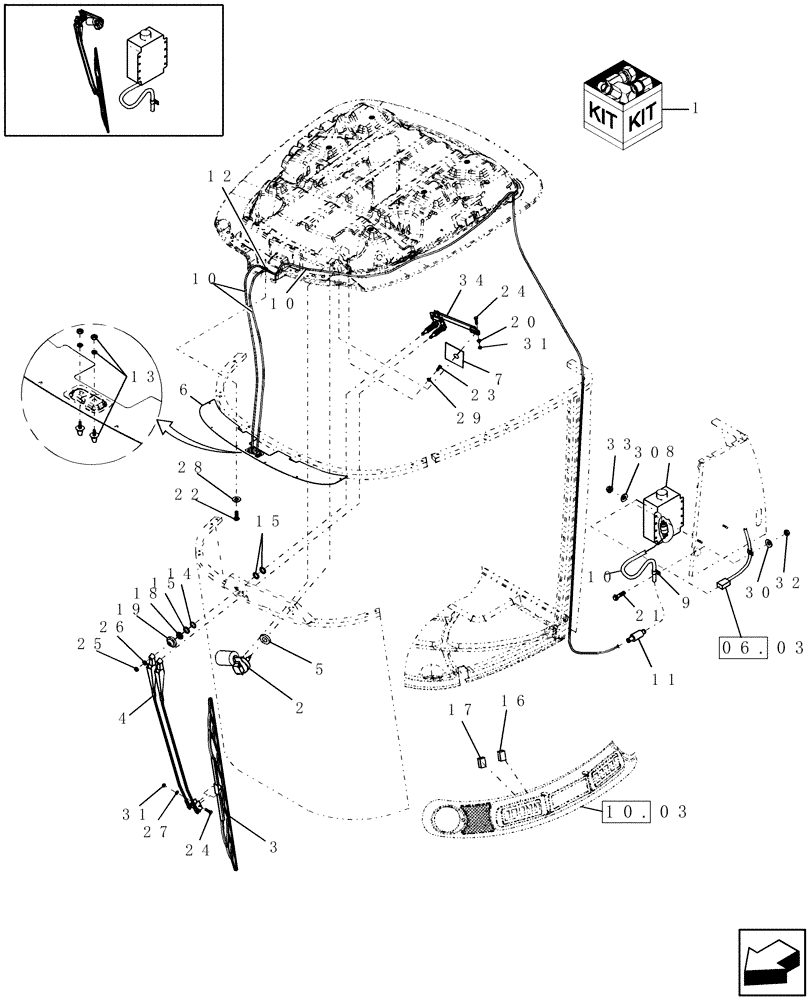

Запчасти Case IH WD2303 (18.08) - WINDSHIELD WIPER KIT (18) - ACCESSORIES

1

717213006

DIA KIT, HARVESTER

Wiper Washer, Includes: Ref. 2 Thru 35 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

84431950

WIPER MOTOR,12V

1шт.

3

84007417

WIPER BLADE,1285mm L

1шт.

4

86542153

WIPER ARM,Dual, 310mm L

1шт.

5

87019751

WIPER SEAL,M20 x 39mm OD x 12.7mm Thk

1шт.

6

87017034

COVER

1шт.

7

87011910

COVER

Decal

1шт.

8

87014923

RESERVOIR, WINDSHIEL

1шт.

9

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

2шт.

10

87282056

HOSE,3.56mm ID x 15240mm L

Washer

1шт.

Cut to fit

1шт.

11

84037530

VALVE

1шт.

12

84037529

3 WAY CONNECTION

1шт.

13

84037532

NOZZLE

Components NSS

2шт.

14

412568

WASHER,27mm ID x 37mm OD x 1mm Thk

2шт.

15

84431243

RING,M26 x 35 x 2 Thk

6шт.

16

86633771

WINDSHIELD WIPER SWI

Two Speed

1шт.

17

84320245

WINDSHIELD WASHER SW

Front, Windshield Washer

1шт.

18

412569

NUT,M26 x 1, Cl 8

2шт.

19

84431242

COVER

2шт.

20

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

1шт.

21

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

22

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

6шт.

23

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

24

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

25

825-1410

NUT,M10, Cl 8

2шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

28

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

6шт.

29

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

31

832-46406

NUT,M6 x 1, Cl 8

2шт.

32

425-105

NUT,5/16"-18, G5

1шт.

33

231-5345

FLANGE NUT,Flg, 5/16"-18

4шт.

34

84061267

ARM

Includes: Ref.s 14, 15, 18 Thru 20, 24 - 26, & 31

1шт.

35

86629501

CLIP

1шт.
