Запчасти Case IH WD2303 (18.07[3]) - DRAPER ADAPTER KIT, DECKSHIFT (18) - ACCESSORIES

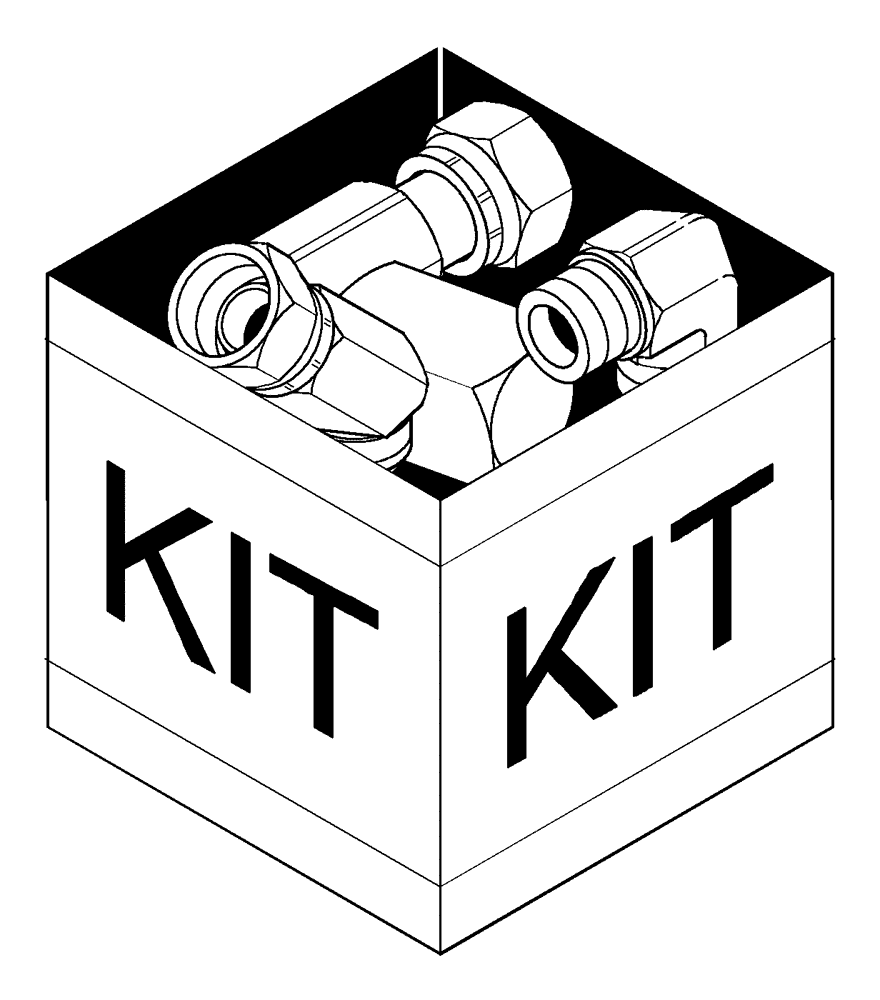

Схема запчастей Case IH WD2303 - (18.07[3]) - DRAPER ADAPTER KIT, DECKSHIFT (18) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

87347506

DIA KIT, HARVESTER

Deck Shift Draper Adapter, Includes: Ref. 2 - 8 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

87042820

SWITCH

Counterbalance

1шт.

3

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

4шт.

4

87052533

CONTROL VALVE

Includes: Proportional Valve, Housing, & Solenoid

1шт.

4

87052534

CONTROL VALVE

Proportional

1шт.

4

87039638

HOUSING

1шт.

4

87352779

SOLENOID

1шт.

5

87052454

VALVE PRESSURE RELIE

1шт.

6

87023838

SWITCH

1шт.

7

87055315

HOSE,0.38" ID x 18.00"

1шт.

8

413-480

BOLT,Hex, 1/4" - 20 x 5", Gr 5

2шт.

9

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

10

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

Выбрано товаров: 14
