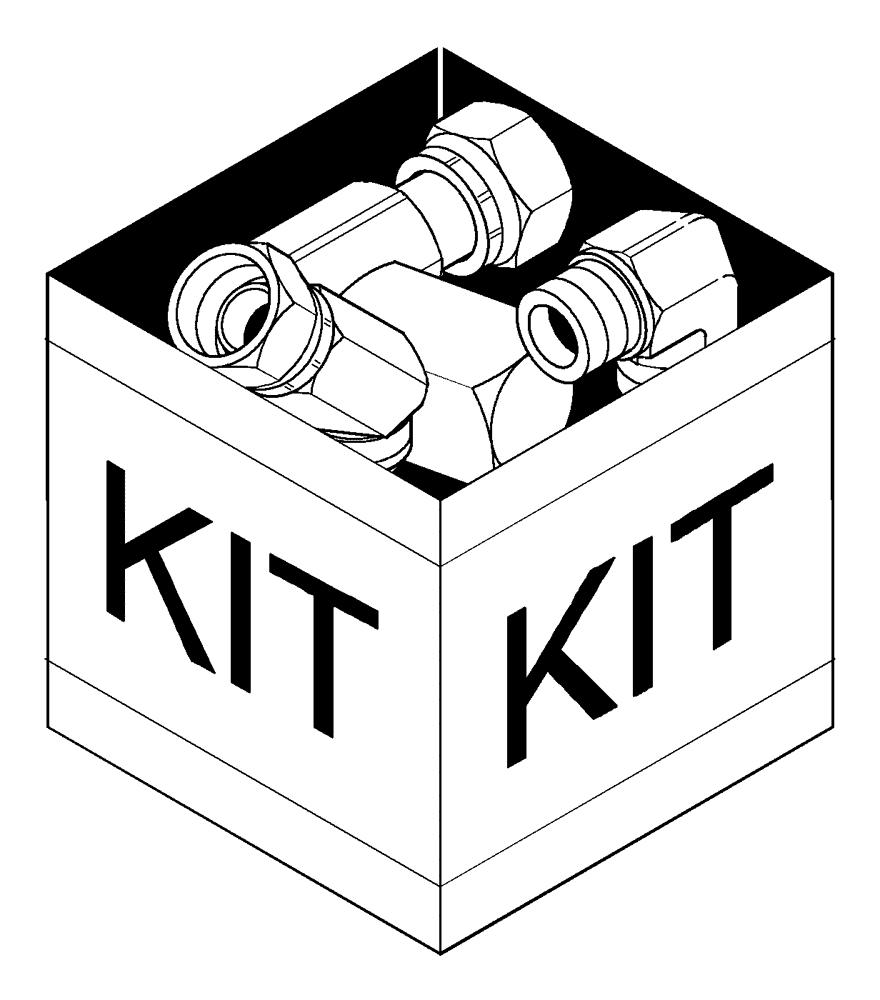

Запчасти Case IH WD2303 (18.07[2]) - DRAPER ADAPTER KIT, STANDARD (18) - ACCESSORIES

1

87347738

DIA KIT, HARV BAG

Draper Adpater, Standard, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Includes: Ref. 95

5шт.

3

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Includes: Ref. 94

4шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl Ref 95

1шт.

5

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

6

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

7

87825

NUT,#10-32

2шт.

8

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

9

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

10

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Includes: Ref. 94

3шт.

11

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Includes: Ref. 94

3шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

7шт.

13

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

16шт.

14

191823

WASHER

1.515" x 2.25"

10шт.

15

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

20шт.

16

264654

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

18

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Includes: Ref. 95

2шт.

19

392696

SELF-TAP SCREW,HWH, M4 x 0.7 x 10mm

Self-Tapping, HWH, M4 x .7 x 10

4шт.

20

705914

ORIFICE

2шт.

21

9601709

HYD CONNECTOR

3шт.

22

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

23

85999238

COUPLING, QUICK, FEM,3/8" x 3/4" - 16 ORB

3/8", Flat Face

2шт.

24

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

3/8", Flat Face

2шт.

25

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Includes: Ref. 95

1шт.

26

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

5шт.

27

86521608

FLANGE NUT,Flg, 5/8"-11, G5

16шт.

28

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

16шт.

29

86538215

NUT,1 1/8"-7, GB

2шт.

30

86566989

CABLE TIE,208mm L

CABLE STRAP

20шт.

31

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

32

86629544

NUT,5/16” – 18, GR B

2шт.

33

86631897

BOLT

2шт.

34

87023836

SWITCH

Rocker, Reel Speed

1шт.

35

87023837

SWITCH

Rocker, Belt Speed

1шт.

36

87036368

DUST CAP

Black

1шт.

37

87039638

HOUSING

C10-2

1шт.

38

87041192

HARNESS

DR-C D, Includes: Fuse & Relays

1шт.

9811773

FUSE,10A, Micro, Red

1шт.

86509590

RELAY

20 Amp

9шт.

39

87041196

HARNESS

RS-C D

1шт.

40

87041305

HARNESS

CN-F D

1шт.

41

87041306

HARNESS

CN-C D, Includes: Fuse & Relays

1шт.

9811773

FUSE,10A, Micro, Red

1шт.

86537972

RELAY

2шт.

42

87043583

HOSE ASSY.

144" Long

1шт.

43

87044412

HEADLESS PIN

Shaft

2шт.

44

87044431

SPACER

M29 x 44.5 x 35.5

2шт.

45

87044432

SPACER

M29 x 38 x 5.5

2шт.

46

87044567

PLATE

1шт.

47

87048685

SWITCH

Rocker, Header Tilt

1шт.

48

87050045

COUPLING, QUICK, FEM

-8

1шт.

49

87052733

CYLINDER ASSY.

2шт.

50

87052974

PLATE ASSY.

Hub: L = M71

2шт.

51

87052976

PLATE ASSY.

Hub: L = M66

2шт.

52

87054010

WIRE HARNESS

DRA-F D, Includes: Diode

1шт.

774735

DIODE,6A

1шт.

53

87054011

WIRE HARNESS

DRB-F D

1шт.

54

87054718

HOSE ASSY.

W/90° Elbow, 3/8" ID, L = 166"

1шт.

55

87054719

HOSE ASSY.

W/90° Elbow, 3/8" ID, L = 141"

1шт.

56

87054720

HOSE ASSY.

W/45° Elbow, 3/8" ID, L = 76"

1шт.

57

87054721

HOSE ASSY.

W/ 45° Elbow, 3/8" ID, L = 136"

1шт.

58

87054722

HOSE,0.38" ID x 54.50", SAE 100R6

1шт.

59

87545542

CONTROL VALVE

Height Control, Refer to Fig. 09.06

1шт.

60

87058223

HOSE ASSY.

W/90° Elbow, 3/8" ID, L = 24"

1шт.

61

87058224

HOSE,9.65 mm ID x 635 mm

W/90° Elbow

1шт.

62

87058225

HOSE,0.38" ID x 16.00", SAE 100R16

9/16" JIC x 9/16" JIC

1шт.

67

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

68

87042032

HARNESS

LT-C D4

1шт.

69

87041308

HARNESS

LT-F D4

1шт.

71

87041193

HARNESS

DR-F D

1шт.

72

87054857

WIRE HARNESS

DR-F

1шт.

73

87545543

FLOW DIVIDER

Valve

1шт.

74

87518211

HOSE ASSY.

1шт.

75

87517567

ANGLE

1шт.

76

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

77

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

78

87528541

WIRE HARNESS

DV-CD4

1шт.

79

87528542

WIRE HARNESS

DV-FD4

1шт.

80

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Includes: Ref. 95

1шт.

81

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Includes: Ref. 94

1шт.

82

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

"P"

2шт.

83

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

84

86563609

CLAMP

4шт.

85

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

86

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

87

87053042

PLATE

Twin Cover

2шт.

88

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

89

86564908

BOLT

Stacking

2шт.

90

86564909

WASHER

Locking Plate

2шт.

91

291525

BRACKET

1шт.

92

87740293

SOLENOID VALVE

Cartridge Check

1шт.

93

87352777

SOLENOID

Coil

1шт.

94

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

95

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
