Запчасти Case IH WD2303 (18.04[1]) - WEIGHT CARRIER KIT, STANDARD AXLE (18) - ACCESSORIES

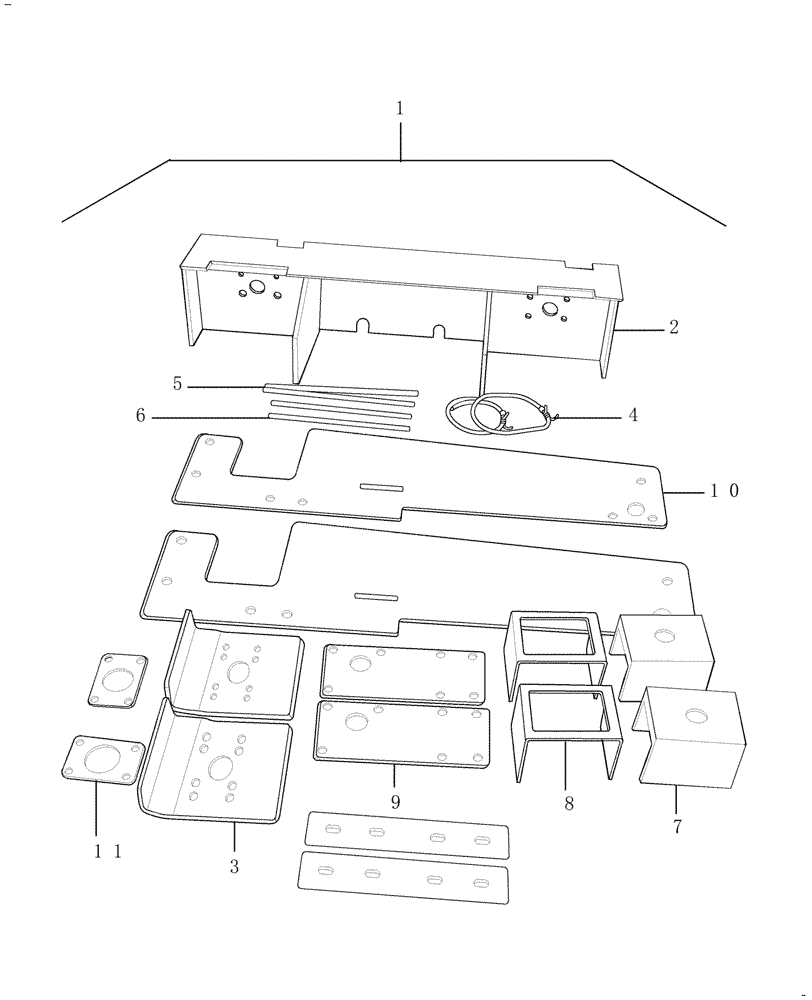

Схема запчастей Case IH WD2303 - (18.04[1]) - WEIGHT CARRIER KIT, STANDARD AXLE (18) - ACCESSORIES
10
4
3
2
9
6
5
11
7
8
1

Артикул

Название

Примечание

Количество

1

87581795

KIT

Weight Carrier, Standard Axle

1шт.

2

87581772

BRACKET

1шт.

3

87580149

BRACKET

2шт.

4

87602467

WIRE HARNESS

2шт.

5

87581892

ROD

2шт.

6

87584735

ROD

2шт.

7

87603983

BRACKET

2шт.

8

87603985

COVER

2шт.

9

87603984

FILLER

2шт.

10

87622818

PLATE

2шт.

11

87593500

FILLER

2шт.

12

86639010

CLAMP,9.5mm, Coat, 13.5mm Bolt Hole, P Type

4шт.

Not Illustrated

1шт.

13

86624020

FLANGE NUT,Flg, 1/4"-20.G5

16шт.

Not Illustrated

1шт.

14

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

8шт.

Not Illustrated

1шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

Not Illustrated

1шт.

16

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

16шт.

Not Illustrated

1шт.

17

86521607

FLANGE NUT,Flg, 1/2"-13, G5

20шт.

Not Illustrated

1шт.

18

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

26шт.

Not Illustrated

1шт.

19

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

8шт.

Not Illustrated

1шт.

20

86000109

COTTER PIN

4шт.

Not Illustrated

1шт.

21

86521616

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

14шт.

Not Illustrated

1шт.

22

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

Not Illustrated

1шт.

23

718215056

WEIGHT

100 LBS, Not included in Weight Carrier Kit Above

1шт.

Not Illustrated

1шт.
