(09.03[2]) - CUT HEIGHT, DRAPER LINKAGE

Запчасти Case IH WD2303 (09.03[2]) - CUT HEIGHT, DRAPER LINKAGE (09) - HEADER LIFT LINKAGE

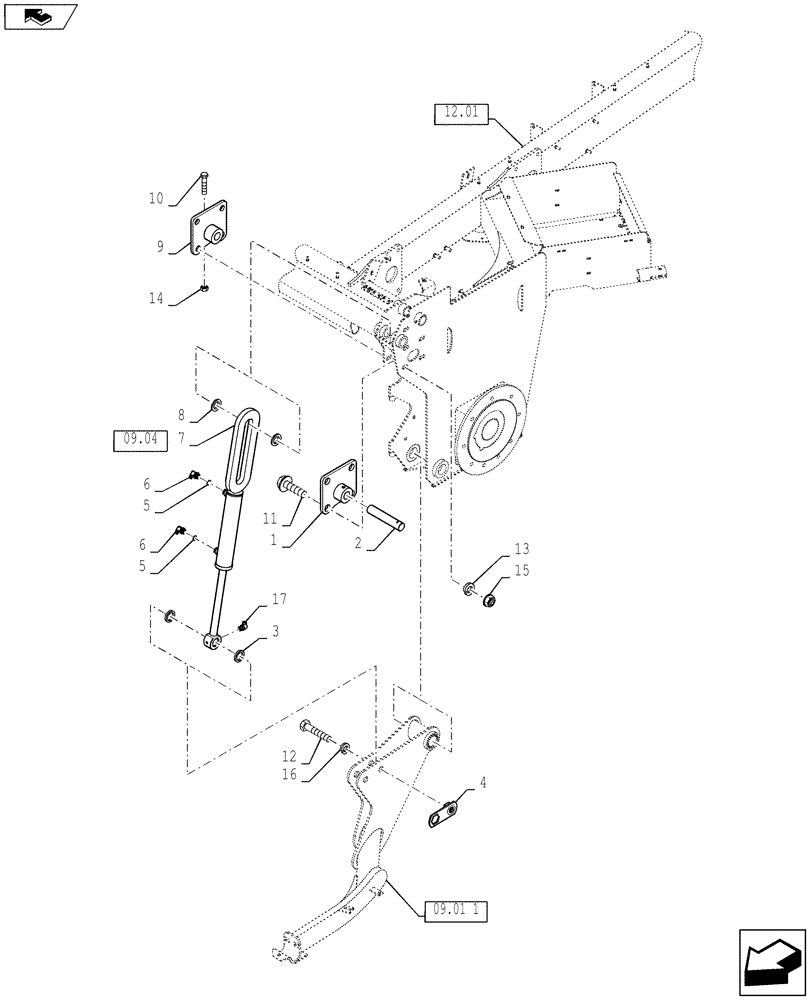

Схема запчастей Case IH WD2303 - (09.03[2]) - CUT HEIGHT, DRAPER LINKAGE (09) - HEADER LIFT LINKAGE
home
09.01 1
7
11
5
3
6
17
16
9
2
09.04
12.01
6
1
14
12
10
5
4
8
13
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87052976

PLATE ASSY.

2шт.

2

87044412

HEADLESS PIN

2шт.

3

87044433

SPACER

4шт.

4

87044434

LINK ASSY.

2шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring

4шт.

7

87052733

CYLINDER ASSY.

Cut Height

2шт.

8

191823

WASHER

10/ARшт.

9

87052974

PLATE ASSY.

2шт.

10

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

11

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

16шт.

12

86538216

BOLT,Hex, 1-1/8" x 4", Gr 5

Cap, HH, G5, 1-1/8"-7 x 4"

2шт.

13

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

16шт.

14

280736

NUT,5/16"-18, GC

2шт.

15

86521608

FLANGE NUT,Flg, 5/8"-11, G5

16шт.

16

88695

LOCK WASHER,1 1/8"

2шт.

17

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.
