(09.02[1.1]) - HYDRAULIC CYLINDER, HEADER LIFT, 2.50 X 10.50

Запчасти Case IH WD2303 (09.02[1.1]) - HYDRAULIC CYLINDER, HEADER LIFT, 2.50 X 10.50 (09) - HEADER LIFT LINKAGE

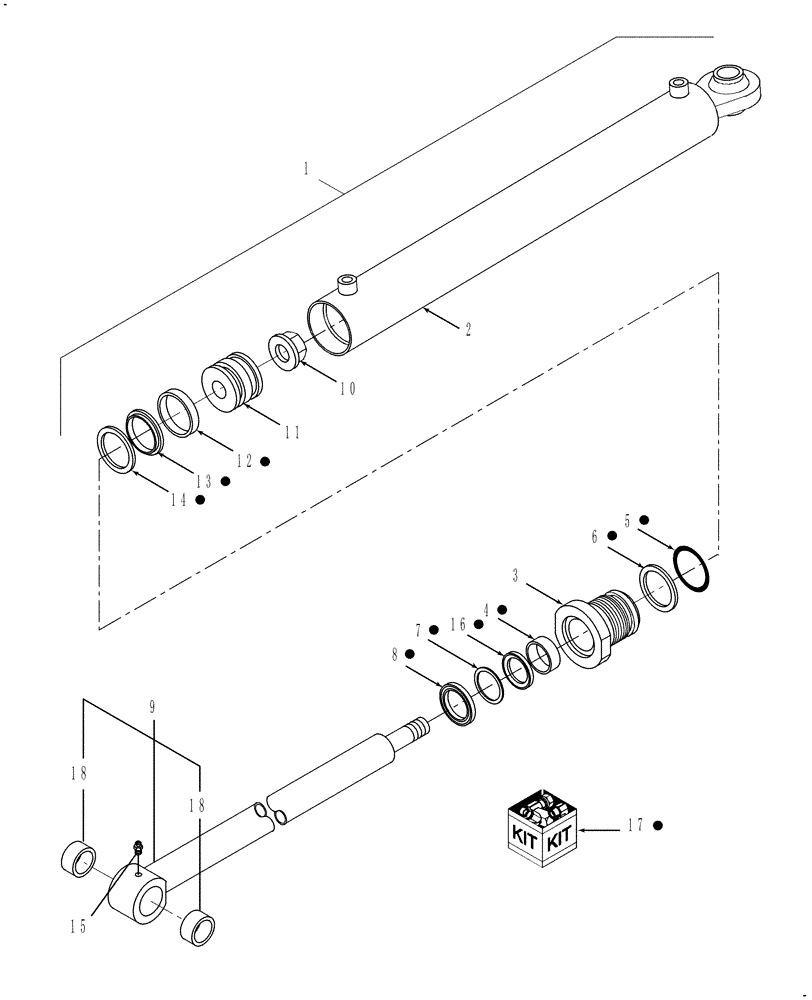

Схема запчастей Case IH WD2303 - (09.02[1.1]) - HYDRAULIC CYLINDER, HEADER LIFT, 2.50 X 10.50 (09) - HEADER LIFT LINKAGE
6
9
2
10
15
4
18
5
3
17
13
8
12
1
11
16
18
14
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84377917

HYDRAULIC CYLINDER,Double Acting, 31.8mm Rod, 266.7mm Stroke

Header Lift, Non-Draper, 2.5" x 10.50"

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel, 2-1/2" ID

1шт.

3

84389829

GLAND

1шт.

4

9843627

WEAR RING,Split, 31.75mm ID x 34.8mm OD x 12.7mm Thk

1.250" ID x .50" Thick

1шт.

5

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

6

9603673

WASHER

Back-Up, 2.397" ID x .040" Thk

1шт.

7

87042812

BACK-UP RING

1шт.

8

87042811

WIPER

1шт.

9

84389784

ROD

Eye On Rod End is 3.25" OD

1шт.

10

84389824

LOCK NUT

1"-14 UNF GR. C

1шт.

11

84389825

PISTON

1шт.

12

783874

WEAR RING,Split, 57.15mm ID x 63.5mm OD x 9.53mm Thk

2.004" ID x .50" Thk

1шт.

13

9614420

SEAL

1шт.

14

87042813

BACK-UP RING

1шт.

15

87414

LUBE NIPPLE,1/4" - 28

1шт.

16

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

Rod

1шт.

17

87042809

SEAL KIT

1шт.

18

84389821

BUSHING

2шт.
