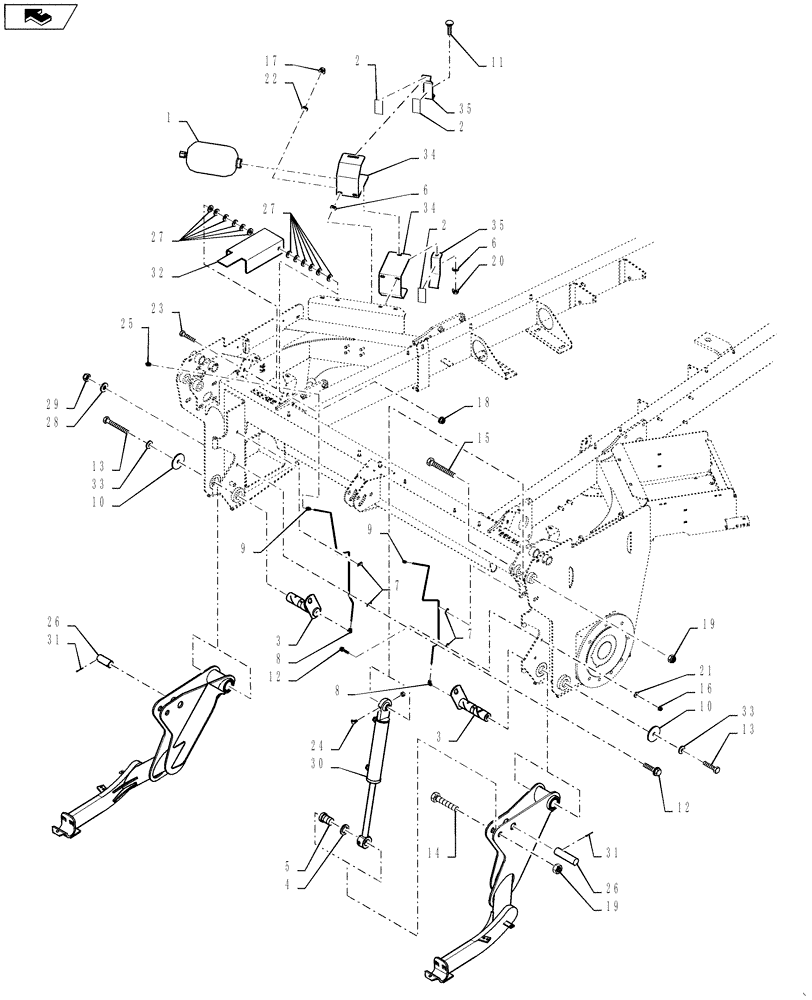

Запчасти Case IH WD2303 (09.01[2.1]) - HEADER LIFT, FROM YCG667001 (09) - HEADER LIFT LINKAGE

1

84221534

ACCUMULATOR

2шт.

2

275053

SEALING STRIP

1шт.

3

86582064

PIN,50.6mm OD x 233.5mm L

2шт.

4

81900328

WASHER,38.48mm ID x 57.15mm OD x 2.9mm Thk

1шт.

5

86974236

SPACER

1шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

9шт.

7

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

8

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

2шт.

9

11787

FITTING,3/8"-24 Fem x 1/8" NPT

2шт.

10

86502976

WASHER

2шт.

11

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

1шт.

12

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

13

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

14

86631897

BOLT

1шт.

15

86619810

BOLT,Hex, 1 1/8" - 7 x 7 1/2", Gr 5

2шт.

16

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

17

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

18

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

19

86538215

NUT,1 1/8"-7, GB

4шт.

20

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

23

280856

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5", Gr 5

2шт.

24

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

25

84303

LUBE NIPPLE,1/8"-27 NPT x 1" lg, Fem

2шт.

26

87400

COTTER PIN,3/16" x 2"

1шт.

27

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

12шт.

28

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

29

86521608

FLANGE NUT,Flg, 5/8"-11, G5

4шт.

30

84357187

HYDRAULIC CYLINDER

2шт.

31

87011404

PIN,38.1mm OD x 117.4mm L

2шт.

32

87044413

CHANNEL

2шт.

33

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

34

87031728

CLAMP

2шт.

35

87031729

CLAMP

2шт.
