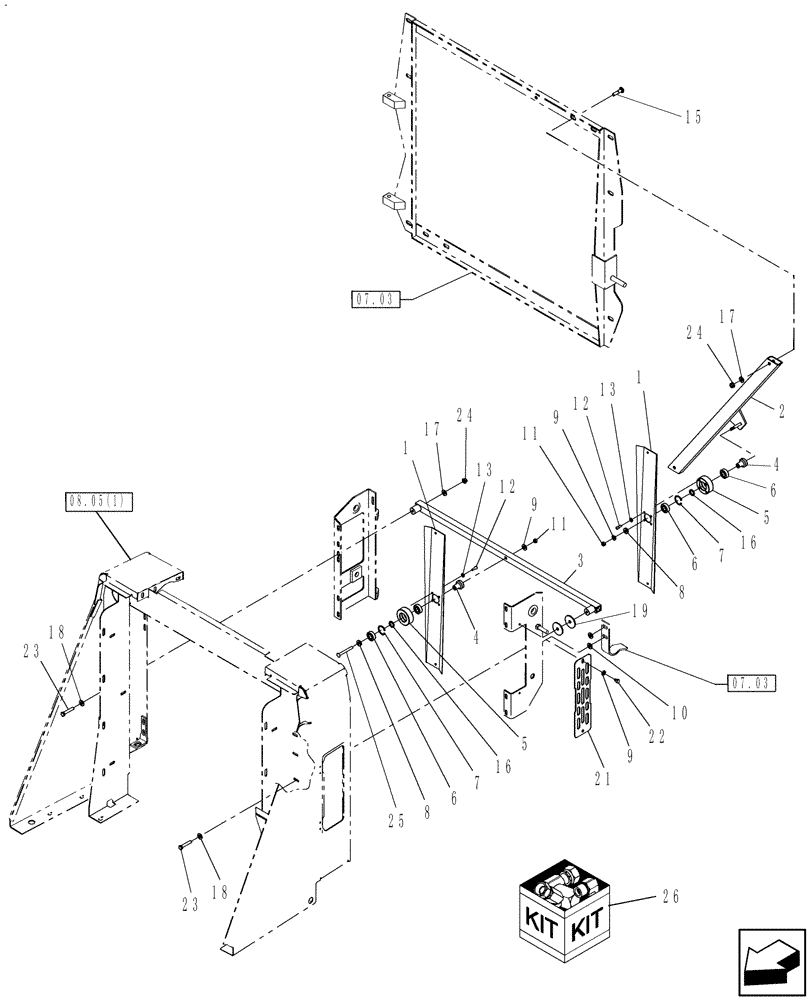

Запчасти Case IH WD2303 (08.08[1]) - CHAFF WIPER, 6 CYL, FROM PIN YAG663501 (08) - SHEET METAL

1

87573998

FAN

2шт.

2

87603019

SUPPORT

1шт.

3

84183793

SUPPORT

1шт.

4

84460219

SHAFT,9mm ID x 17mm OD, 24.5mm OD Shoulder, 32mm Head

2шт.

5

84437613

BUSHING,35mm ID x 65mm OD x 23mm Thk

2шт.

6

86629503

BALL BEARING,17mm ID x 35mm OD x 10mm W

4шт.

7

300642

CIRCLIP,M35 x 1.5mm W, Internal

2шт.

8

86592711

WASHER,8.4mm ID x 21mm OD x 4mm Thk

2шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

10

87644151

WASHER

Not Used If Flat Present On Oil Cooler

2шт.

11

9706690

NUT,M8 x 1.25, Cl 8

2шт.

12

84058583

HEX SOC SCREW,BTN HD, M6 x 16mm, Cl 8.8

8шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

15

280646

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

2шт.

16

84334251

WASHER,17.5mm ID x 24mm OD x 2mm Thk

2шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

18

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

19

495-81147

WASHER,0.41" ID x 2" OD x 0.11" Thk

2шт.

21

87574406

SHIELD

1шт.

22

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

23

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

24

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

25

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

1шт.

26

87573917

KIT

DIA

1шт.

27

9626645

NUT

9/16" U Type

2шт.
