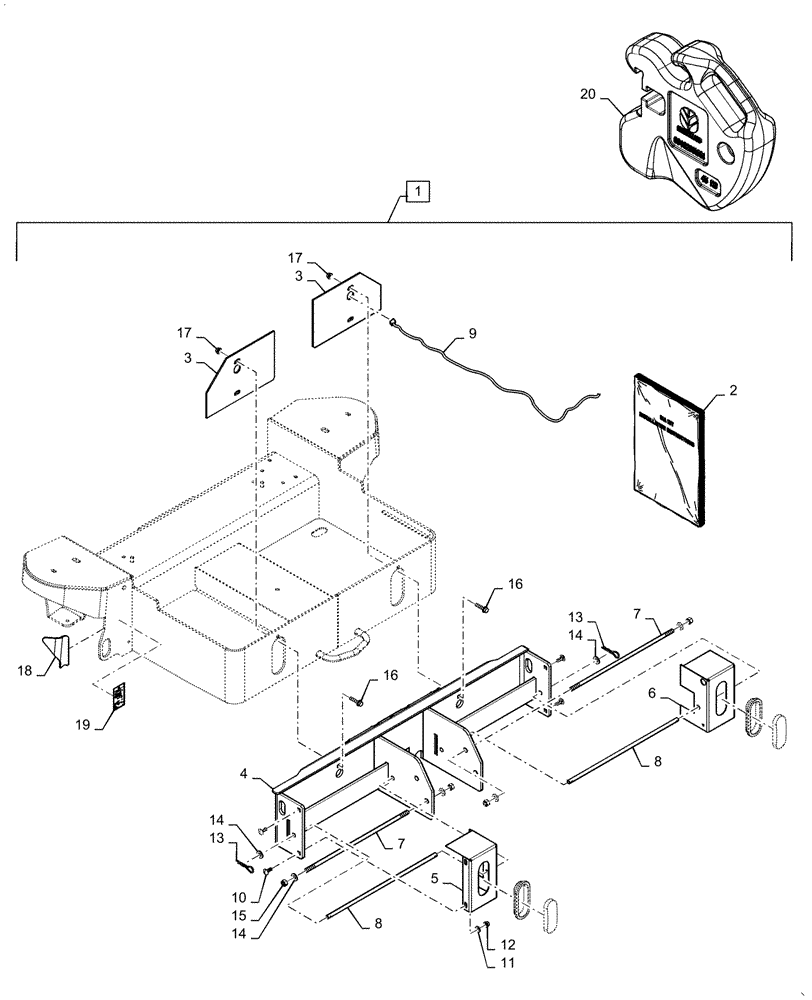

Запчасти Case IH WD1903 (39.140.AC) - KIT, BALLAST BAR, ASN YDG670501 (39) - FRAMES AND BALLASTING

1

47848496

KIT

Incl 2 - 19

1шт.

2

47848057

INSTRUCTION

1шт.

3

47830574

PLATE

2шт.

4

47879946

BRACKET

1шт.

5

47832079

COVER

LH

1шт.

6

47832082

COVER

RH

1шт.

7

47779231

ROD

Threaded

2шт.

8

47779227

ROD

2шт.

9

47845356

WIRE HARNESS

Tail Light Extension

2шт.

10

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

4шт.

11

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

12

86521607

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

13

86000109

COTTER PIN

4шт.

14

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

8шт.

15

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

16

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

17

87025806

LOCK NUT

4шт.

18

47844637

PLATE

2шт.

19

47862516

DECAL

Important, Lockout Pin

2шт.

20

86402078

WEIGHT

NH

1шт.

20

86405404

WEIGHT

CIH

1шт.

20

718215036

WEIGHT

100 lb.

1шт.
