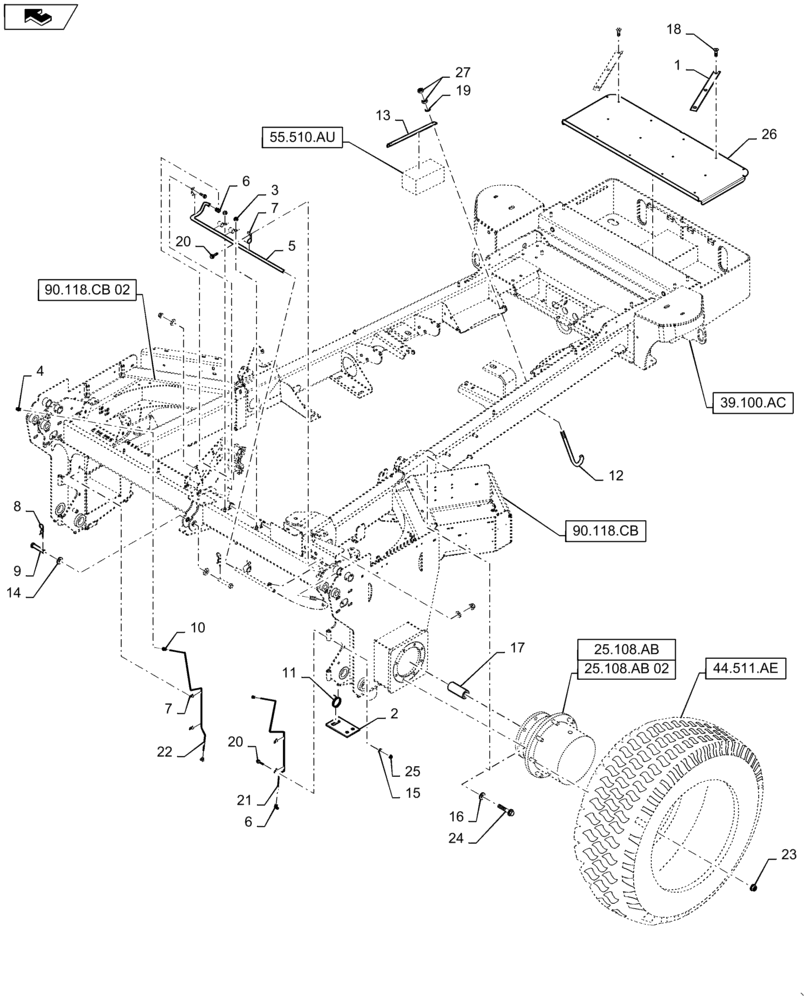

Запчасти Case IH WD1903 (39.100.AB) - MAIN FRAME, FRONT (39) - FRAMES AND BALLASTING

1

86567543

WEAR STRIP

2шт.

2

87052140

SKID/SHOE

2шт.

3

9823743

FLANGE NUT,Flg, 5/16"-18

2шт.

4

84303

LUBE NIPPLE,1/8"-27 NPT x 1" lg, Fem

3шт.

5

86629566

PLASTIC-RUBBER TUBE,2.8mm ID x 4.8mm OD

Cut From Bulk 6 Ft.

6шт.

6

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

3шт.

7

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

8шт.

8

86000109

COTTER PIN

2шт.

9

84206494

PIN,19.05mm OD x 108.07mm L

2шт.

10

11787

FITTING,3/8"-24 Fem x 1/8" NPT

3шт.

11

801895

CABLE TIE,30.63"

2шт.

12

798180

BOLT

2шт.

13

794967

SUPPORT

Battery Strap

2шт.

14

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

16

86729275

LOCK WASHER,5/8 0.634 CST ZND

16шт.

17

84291751

SPLINED COUPLING,13T

2шт.

18

86616032

SELF-TAP SCREW,Pan HD, 1/4" - 20 x 1"

6шт.

19

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

20

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

21

86596671

TUBE,4.76 mm DIA

Grease Line LH

1шт.

22

86596672

TUBE,4.76 mm DIA

Grease Line RH

1шт.

23

9790660

FLANGE NUT,Flg, 3/4"-16, G8

20шт.

24

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

16шт.

25

86521605

FLANGE NUT,5/16"-18, Cl 5

6шт.

26

47474339

COVER ASSY

NH Drk Gry Weight Box Cover

1шт.

27

9628503

NUT,3/8"-16, G5

8шт.
