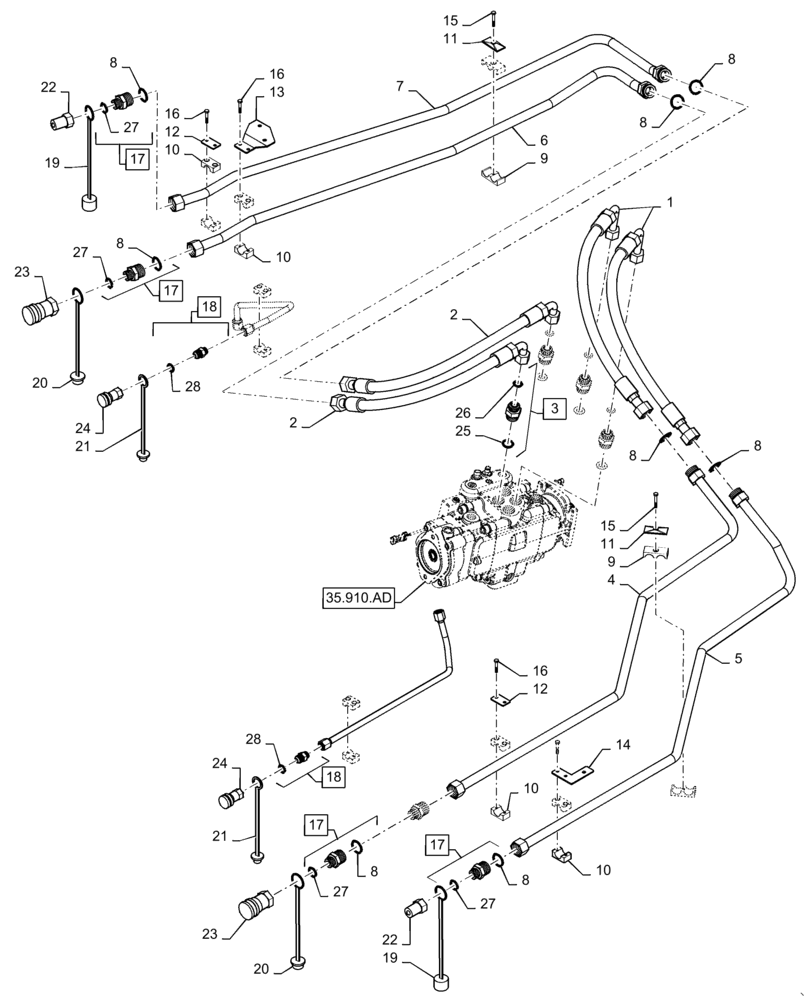

Запчасти Case IH WD1903 (35.910.AF) - HYDRAULIC SYSTEM, DRIVE, DRAPER 6 CYLINDER (35) - HYDRAULIC SYSTEMS

1

47396858

HYDRAULIC HOSE

LH Draper Header Drive

2шт.

2

47370375

HYDRAULIC HOSE

RH Draper Header Drive

2шт.

3

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl 25, 26

4шт.

4

47396854

HYD TUBE

LH Draper Header Forward

1шт.

5

47396859

HYD TUBE

LH Draper Header Reverse

1шт.

6

47396849

HYD TUBE

RH Draper Header Forward

1шт.

7

47396851

HYD TUBE

RH Draper Header Reverse

1шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

8шт.

9

86900725

CLAMP

2шт.

10

87022323

CLAMP,25.4mm D Clamping Pipe

4шт.

11

1347127C1

PLATE

2шт.

12

86900727

COVER

2шт.

13

47360929

BRACKET

1шт.

14

47390242

BRACKET

1шт.

15

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

2шт.

16

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

8шт.

17

9840329

HYD CONNECTOR

Incl 8, 27

4шт.

18

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 28

2шт.

19

87036367

DUST CAP

Black, 3/4"

2шт.

20

87036366

DUST CAP

Black Plug, 3/4"

2шт.

21

87036368

DUST CAP

Black Plug 1/2"

2шт.

22

9820148

COUPLING,1-1/16" - 12

Male

2шт.

23

86564734

COUPLING

Female

2шт.

24

87037009

COUPLING, QUICK, FEM

2шт.

25

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl 3

4шт.

26

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Incl 3

4шт.

27

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl 17

4шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl 18

2шт.
