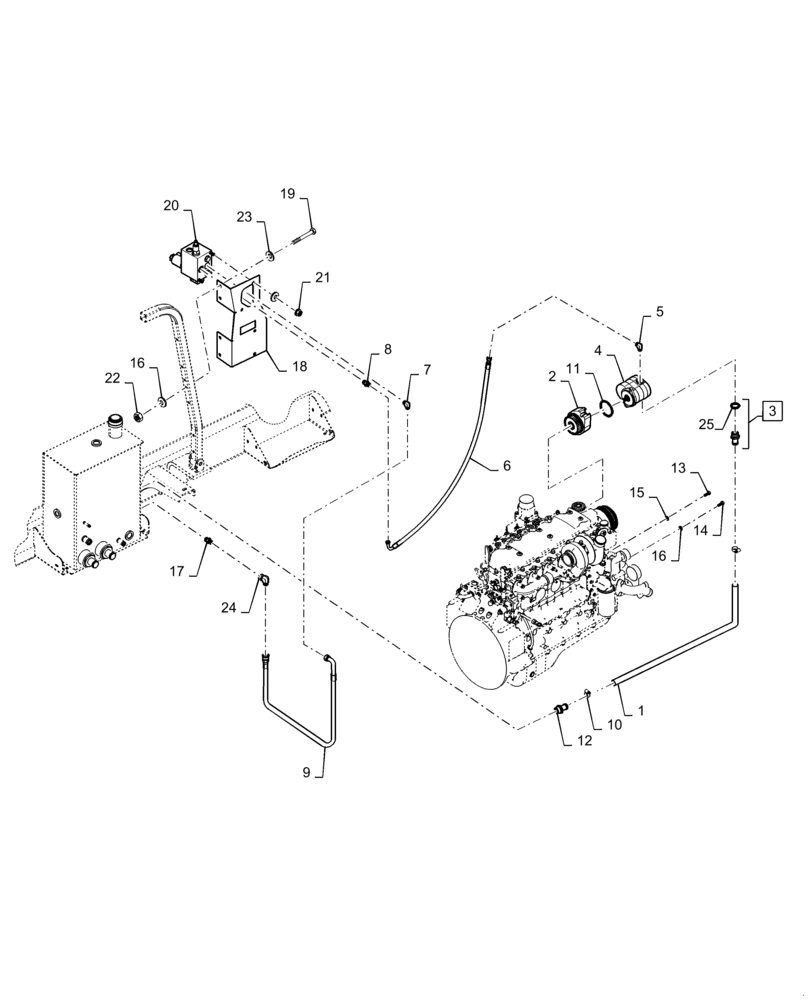

Запчасти Case IH WD1903 (35.220.AB) - AUXILIARY DRIVE, HYDRAULIC REEL, 6 CYLINDER (35) - HYDRAULIC SYSTEMS

1

87032237

HOSE,1.00" ID x 44.00", SAE 100R4

1шт.

2

84272202

PTO

Kit

1шт.

3

87027931

NIPPLE

Incl 25

1шт.

4

87050689

HYDRAULIC PUMP,22.8 CC

Gear

1шт.

5

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

1шт.

6

84130833

HOSE

1шт.

7

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

8

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

9

87043285

HOSE ASSY.

1шт.

10

86536660

HOSE CLAMP,25mm - 44mm

2шт.

11

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

12

47503592

FITTING

1шт.

13

86511099

HEX SOC SCREW,M12 x 50mm, Cl 12.9, Full Thd

2шт.

14

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

17

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

18

47495079

BRACKET

Auxiliary Control Valve

1шт.

19

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

20

86977332

HYDRAULIC VALVE

1шт.

21

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

22

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

23

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

24

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

25

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl 3

1шт.
