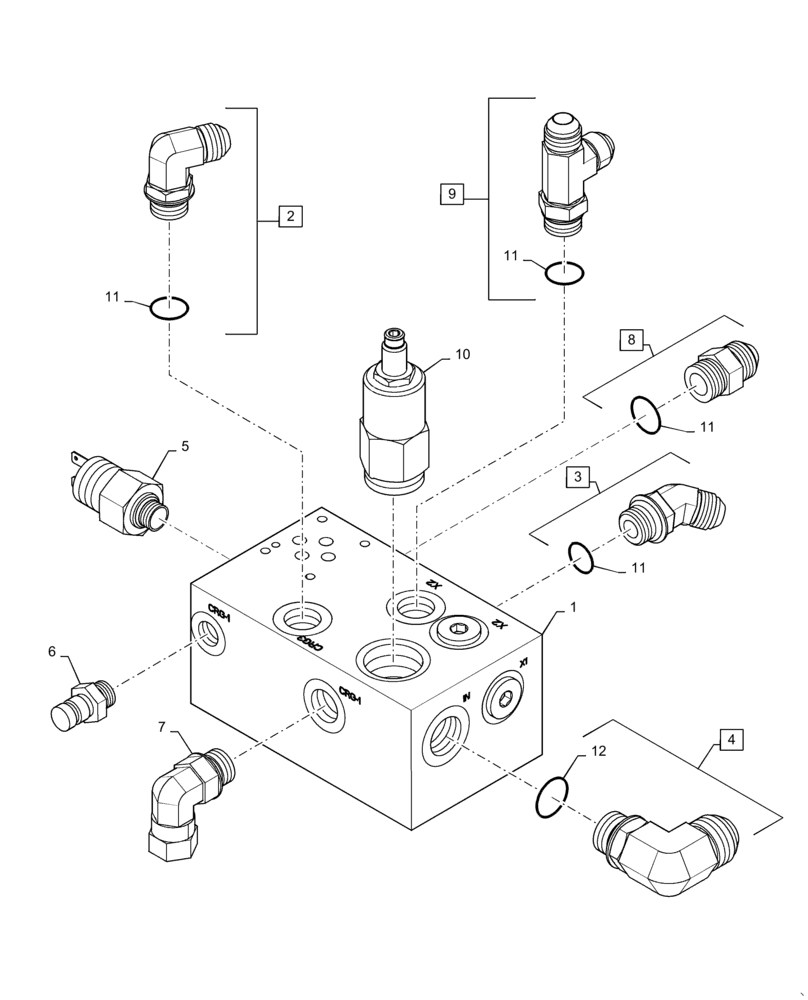

Запчасти Case IH WD1903 (35.128.AE) - HYDRAULIC MANIFOLD, DRAPER CHARGE (35) - HYDRAULIC SYSTEMS

1

47404488

HYDRAULIC MANIFOLD

Charge Relief

1шт.

2

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 11

1шт.

3

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl 11

1шт.

4

144123

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

1шт.

5

84155716

PRESSURE SWITCH

Charge Pressure

1шт.

6

86596853

QUICK MALE COUPLING,9/16"-18

1шт.

7

84603097

ELBOW

Elbow, 90, 37D-8 FSWVL M Adj ORB

1шт.

8

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

37FL X ORB -8, Incl 11

1шт.

9

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 11

1шт.

10

NSS

NOT SOLD SEPARAT

Relief Valve, Order Ref 1

1шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl 2, 3, 8, 9

4шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl 4

1шт.
