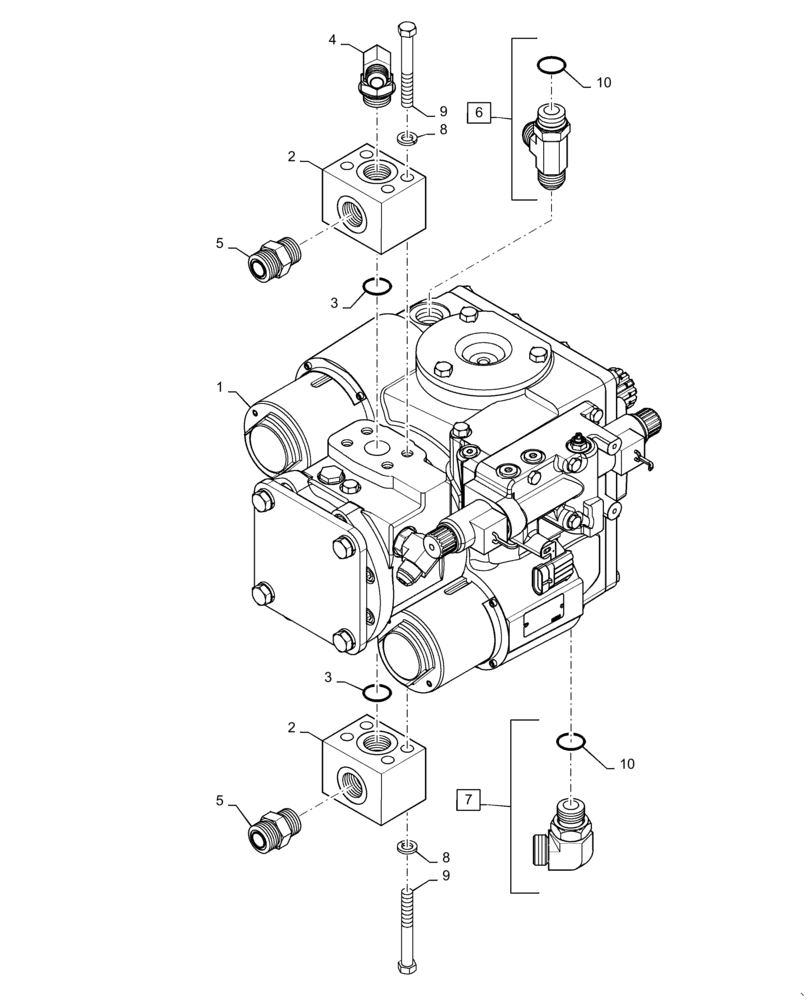

Запчасти Case IH WD1903 (35.106.AD[01]) - HYDRAULIC PUMP, PISTON, NON DRAPER 6 CYLINDER (35) - HYDRAULIC SYSTEMS

1

47430887

HYDRAULIC PUMP

Piston Pump, Non-Draper, 105CC

1шт.

2

84591069

HYDRAULIC MANIFOLD

Header Pump

2шт.

3

353108

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

2шт.

4

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

2шт.

5

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

6

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

Incl 10

1шт.

7

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 10

1шт.

8

81547

LOCK WASHER,7/16"

8шт.

9

9627866

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

8шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl 6, 7

2шт.
