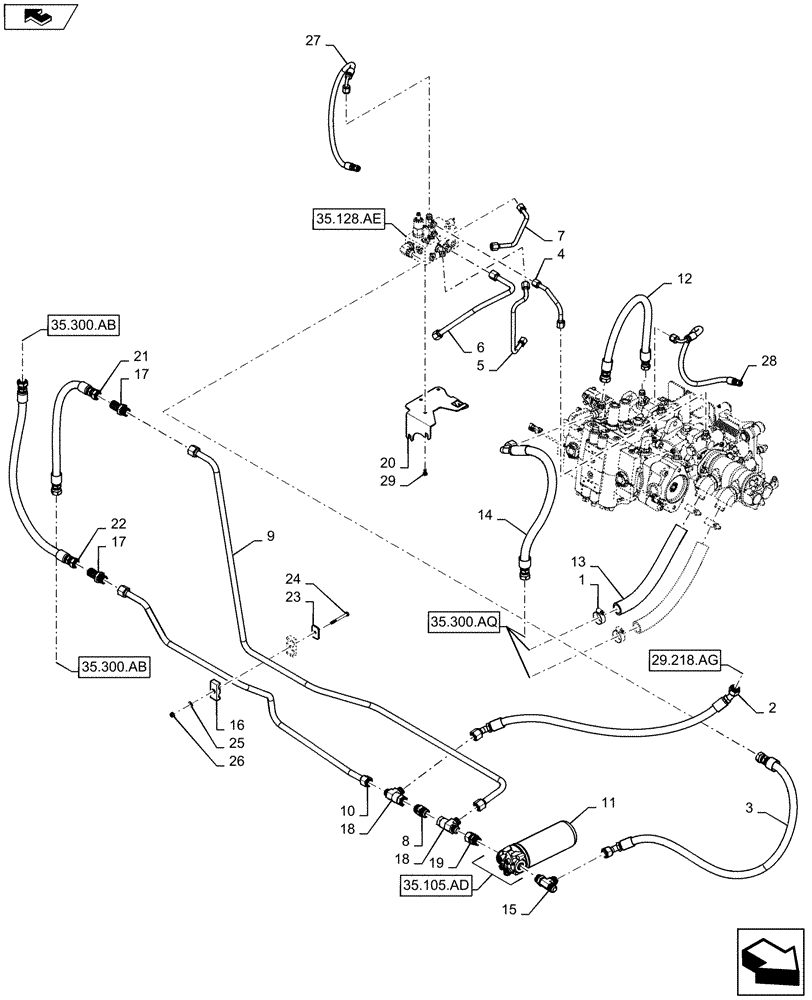

Запчасти Case IH WD1903 (35.105.AC) - HYDRAULIC SYSTEM, OIL COOLER, RETURN LINES & FILTER, 6 CYL DRAPER (35) - HYDRAULIC SYSTEMS

1

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

4шт.

2

47440303

HYDRAULIC HOSE

Charge Pump To Tee (Supply)

1шт.

3

84597539

HYDRAULIC HOSE

Charge Manifold Supply

1шт.

4

47415328

HYD TUBE

Ground Drive Rear Charge

1шт.

5

47419306

HYD TUBE

Ground Drive Case Flush

1шт.

6

47415341

HYD TUBE

Charge 2 Header Charge

1шт.

7

47415352

HYD TUBE

Draper Header Case Flush

1шт.

8

47481633

CHECK VALVE

Check Valve, 125 PSI

1шт.

9

47435166

HYD TUBE

Oil Cooler Return

1шт.

10

47435164

HYD TUBE

Oil Cooler Supply

1шт.

11

84487527

FILTER ASSY

Complete, Includes Head (NSS) and Filter, Ref 30

1шт.

12

47434599

HYDRAULIC HOSE

Ground Drive Case Drain

1шт.

13

47434600

HYDRAULIC HOSE

2шт.

14

47434602

HYDRAULIC HOSE

Header Pump Case Drain

1шт.

15

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

16

86563609

CLAMP

1шт.

17

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

18

87698812

HYD CONNECTOR

2шт.

19

84221265

HYD CONNECTOR

1шт.

20

84602640

BRACKET

1шт.

21

87752136

HYDRAULIC HOSE,16.00 mm ID x mm, SAE 100R3 Class 5

Oil Cooler Out

1шт.

22

87521035

HOSE,0.63" ID x 34.50", SAE J516

Oil Cooler In

1шт.

23

790242

COVER

1шт.

24

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

1шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

26

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

27

47468237

HYDRAULIC HOSE

Steering Valve

1шт.

28

47434603

HYDRAULIC HOSE

Prop Valve To Tank

1шт.

29

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

30

47833564

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L, M87 x 2.5-6H, <4 Microns

1шт.
