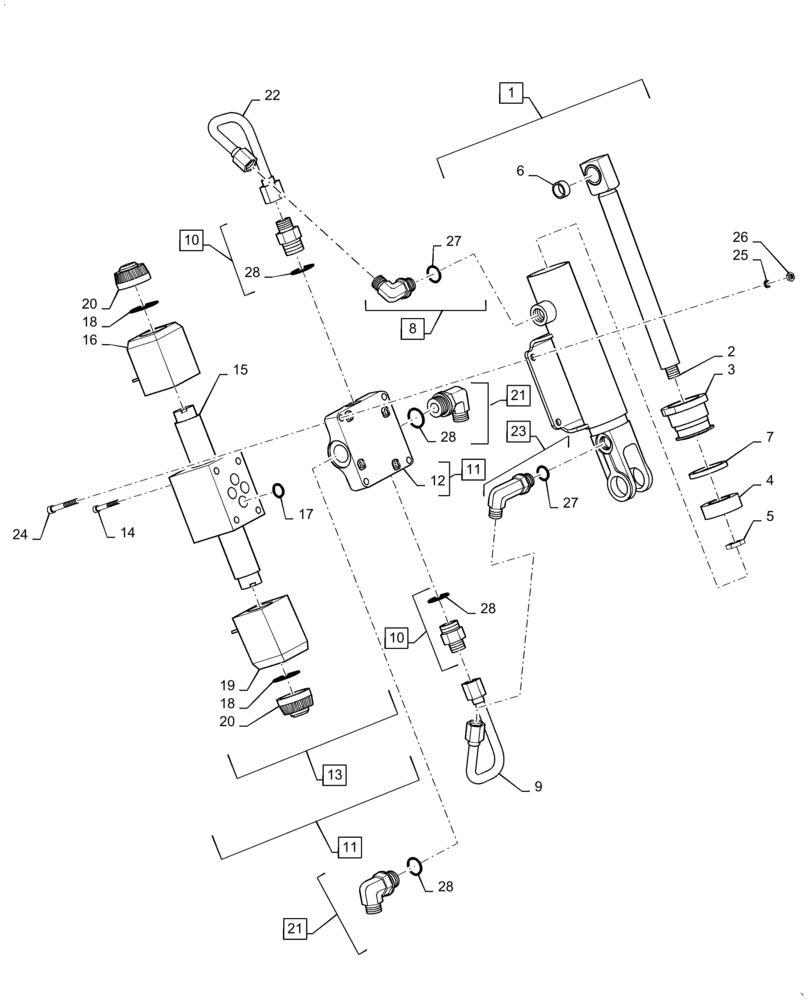

Запчасти Case IH WD1903 (29.100.AD) - CYLINDER, FNR,CONTROL VALVE ASSY, DRIVE (29) - HYDROSTATIC DRIVE

1

47426740

HYDRAULIC CYLINDER

FNR, 1.5 In. X 3.3 In. Incl 1 - 7

1шт.

2

87033958

PISTON ROD/GLAND

.75 In. OD

1шт.

3

87029765

CYLINDER END CAP

Gland

1шт.

4

87033978

STOP DEVICE

1.25 In.

1шт.

5

9802182

LOCK NUT,1/2"-20, GB

1шт.

6

86581134

BUSHING

Bronze

1шт.

7

87029768

SEAL KIT

Services Cylinder 47426740,

1шт.

8

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 27

1шт.

9

86974055

HYD TUBE

Port B To Rod End

1шт.

10

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Incl 28

2шт.

11

87043393

VALVE

FNR, Complete, Incl 12 - 14

1шт.

12

86729490

PLATE

Manifold Sub Plate, FNR Valve

1шт.

13

87043394

BY-PASS VALVE

4 Way Valve, Incl 15 - 20

1шт.

14

86514807

SET OF SCREWS,#10 - 24 x 1-1/4"

4 Bolts

1шт.

15

NSS

NOT SOLD SEPARAT

Order Complete Valve 87043394

1шт.

16

87623291

COIL

Solenoid, 2 Pin, 12V

1шт.

17

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

4шт.

18

87753668

O-RING,0.921" ID x 1.199" OD x 0.139"

2шт.

19

87623292

COIL

Solenoid, 3 Pin, 12V

1шт.

20

188106A1

NUT

M20 X 1.0

2шт.

21

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Incl 28

2шт.

22

86974054

HYD TUBE

Port A To Cap End

1шт.

23

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 27

1шт.

24

86511678

HEX SOC SCREW,#10 - 24 x 1 1/2"

4шт.

25

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

4шт.

26

87304

NUT,#10-24

4шт.

27

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl 8, 23

2шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl 10, 21

3шт.
