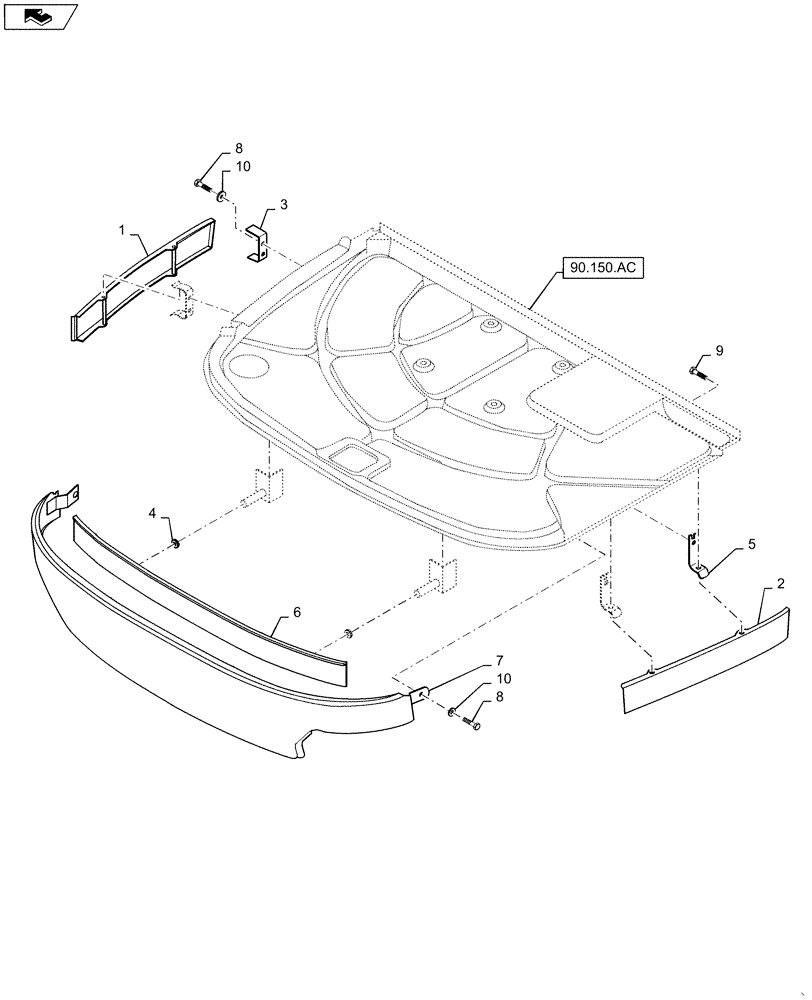

Запчасти Case IH WD1903 (90.160.CJ[02]) - TRIM PANEL, CAB, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87033692

SKIRT

RH, Red

1шт.

2

87033691

SKIRT

LH, Red

1шт.

3

87026096

SPRING CLIP

2шт.

4

102043

GROMMET,19.05mm ID x 34.925mm OD x 11.11mm Thk

2шт.

5

87048477

SPRING CLIP

2шт.

6

87357982

SEAL

Cut To Length, Approx 3.5 FT (42 In)

1шт.

7

84558411

PANEL

Skirt, Red NH

1шт.

With Holes

1шт.

7

84558412

PANEL

Skirt, Red CIH

1шт.

Without Holes

1шт.

8

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

9

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

4шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.
