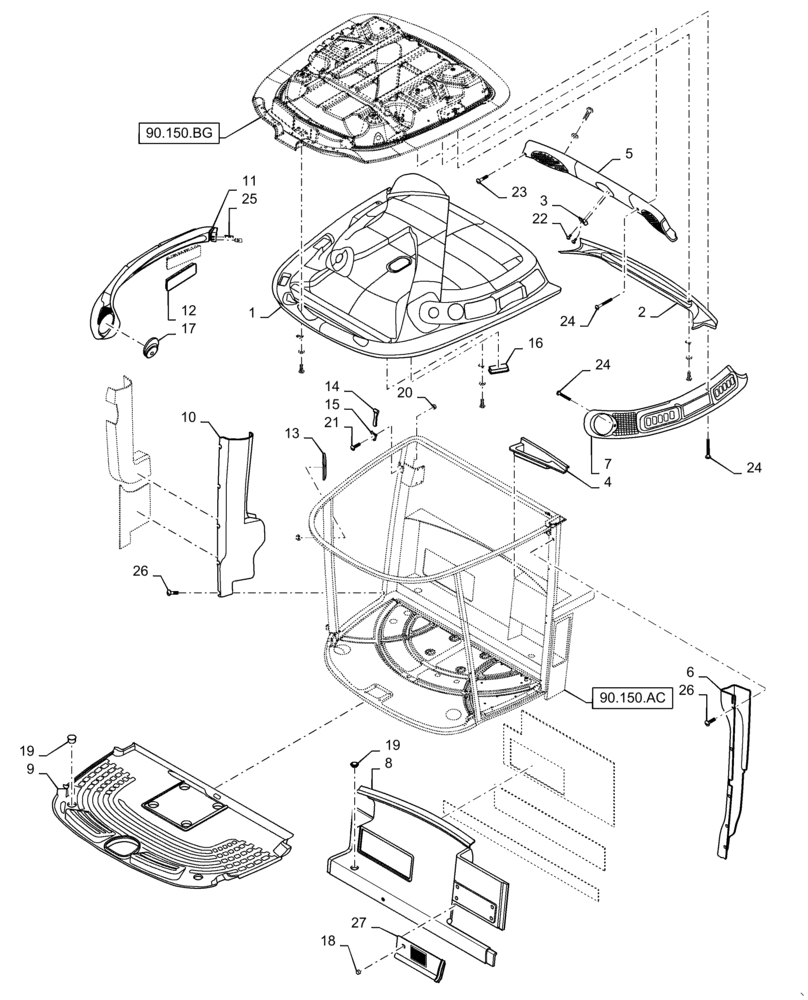

Запчасти Case IH WD1903 (90.160.AA) - CAB INTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86979731

CAB

Headliner

1шт.

2

86641507

LINER

Rear

1шт.

3

86520824

HOOK

Coat Hanger

1шт.

4

87029702

TRAY ASSY.

1шт.

5

86520804

COVER

Left Rear

1шт.

6

87043705

COVER

B Pillar

1шт.

7

86520801

COVER

Left Upper

1шт.

8

87719755

COVER

Rear Wall

1шт.

9

87043710

MAT

Floor, Rubber

1шт.

10

87043703

LINER

Right Rear Poly Trim Panel, Gray

1шт.

11

86520798

COVER

Right Upper

1шт.

12

87105189

COVER

Blank Cover Plate, Less Radio

2шт.

13

86011713

REAR VIEW MIRROR

1шт.

14

9507312

HAMMER

Escape Tool

1шт.

15

9507313

HOLDER

Hammer Holder

1шт.

16

87281670

VENT

Vent

8шт.

17

84059804

GRILLE

Speaker

2шт.

18

86625129

PLUG,Dome, 1" Hole, Nylon

1шт.

19

84067943

PLUG,M52

3шт.

20

86508812

NUT,M3, Cl 8

2шт.

21

86511815

SCREW,Pan, M3 x 0.5 x 8mm, Cl 4.8

2шт.

22

84058989

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

2шт.

23

86017957

SCREW,Phillips Drive, Oval HD, M6 x 20mm, Cl 4.8

4шт.

24

84439080

BOLT,Phillips Drive, Flat HD, M6 x 1 x 57mm, Cl 4.8

7шт.

25

86014250

SPRING NUT,M6 x 1.0

4шт.

26

84320280

PLUG

10шт.

27

87719918

COVER

Access Panel, Wheat

1шт.

27

87719916

COVER

Access Panel, Gray

1шт.
