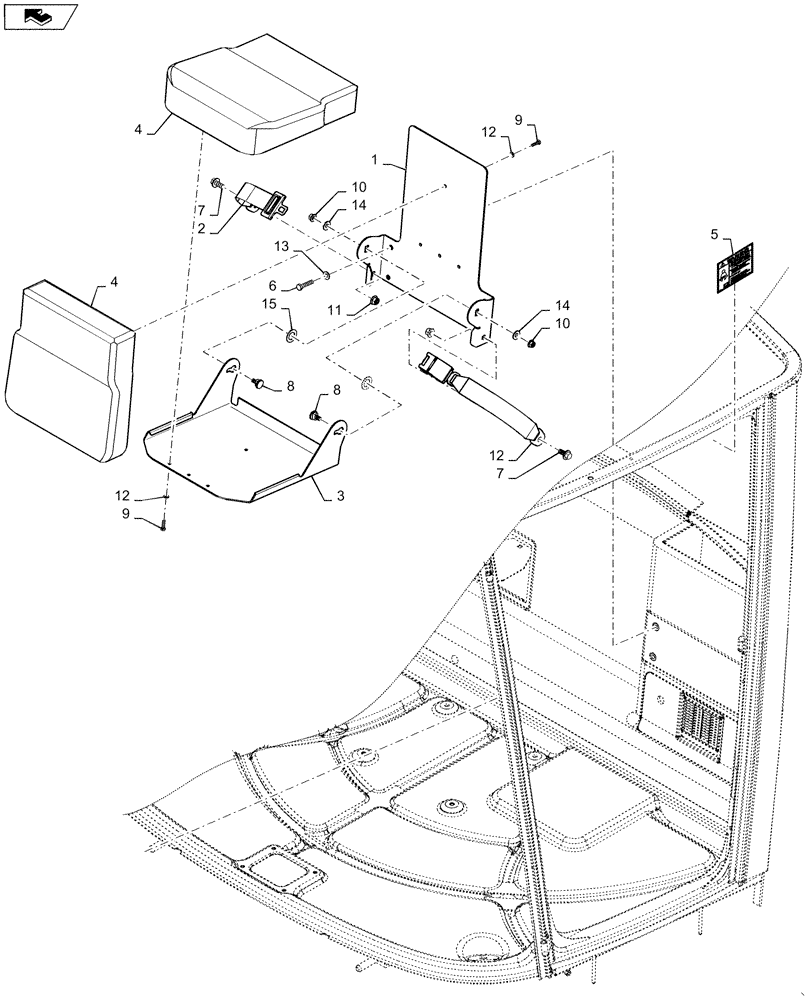

Запчасти Case IH WD1903 (90.151.AC) - SEAT ACCESSORY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87031932

SEAT BACK

1шт.

2

86530940

SAFETY BELT ,48.00 mm W

1шт.

3

87031934

SEAT SUPPORT

1шт.

4

87757877

CUSHION

2шт.

4

87045195

CUSHION

2шт.

5

86640438

WARNING DECAL

1шт.

6

50600

WASHER,22mm ID x 38mm OD x 1.5mm Thk

2шт.

7

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

4шт.

8

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

9

84442012

WHEEL SHAFT

2шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

11

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

12

86619802

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

13

86619803

FLANGE NUT

2шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.
