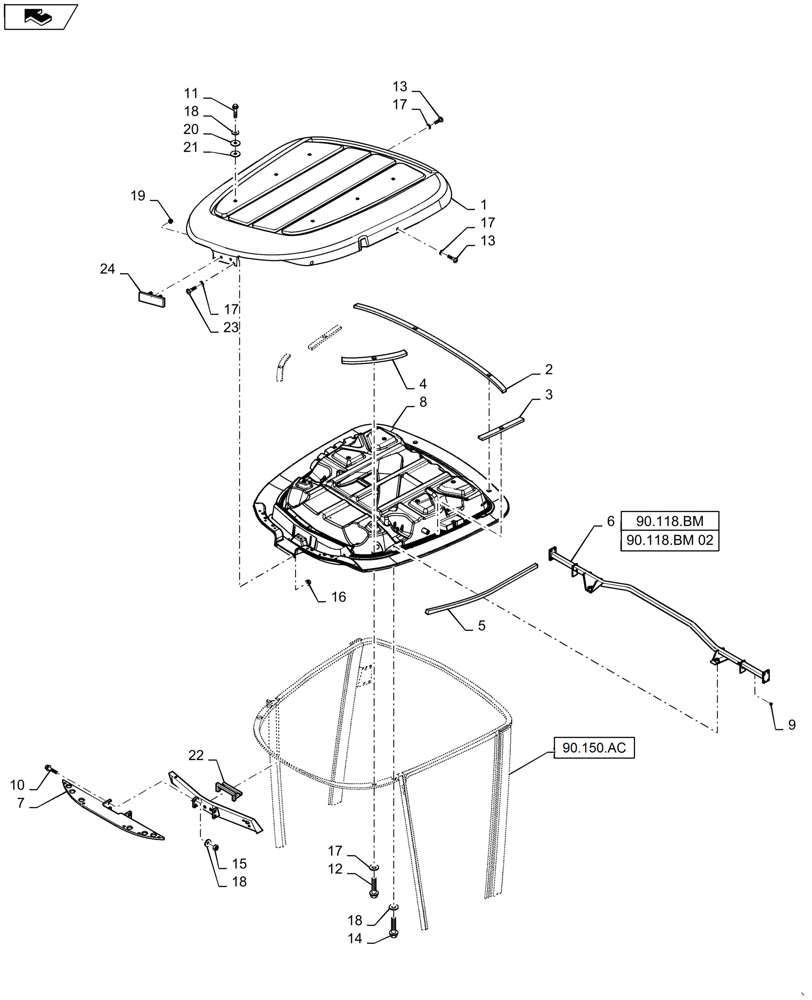

Запчасти Case IH WD1903 (90.150.BH) - ROOF, ROOF LINING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47540258

ROOF

Upper, Red

1шт.

1

87059721

ROOF

Upper, Yellow

1шт.

2

86636008

PLATE

Rear

1шт.

3

87013422

PLATE ASSY.

Middle

2шт.

4

87013423

PLATE

Front

2шт.

5

86534853

GASKET,10mm W x 6010mm L x 10mm Thk

1шт.

6

87019847

SUPPORT ASSY.

Mirror

1шт.

7

87013416

SUPPORT

Lamp

1шт.

8

87059723

ROOF

Lower, ABS

1шт.

9

86500375

PLUG

Plug

1шт.

10

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

11

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

6шт.

12

86534686

HEX SOC SCREW,M6 x 30mm, Cl 12.9

6шт.

13

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

7шт.

14

84000811

SCREW,M8 x 35mm, Cl 8.8

4шт.

15

9706690

NUT,M8 x 1.25, Cl 8

4шт.

16

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

15шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

14шт.

19

86628134

PUSH-ON NUT

2шт.

20

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

6шт.

21

87026367

RUBBER WASHER

6шт.

22

87033278

SEAL

Rubber Seal, Approx 18 In

1шт.

23

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

2шт.

24

87716230

EMBLEM

Case IH Medallion

1шт.
