Запчасти Case IH WD1903 (90.150.AJ) - SUSPENSION, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

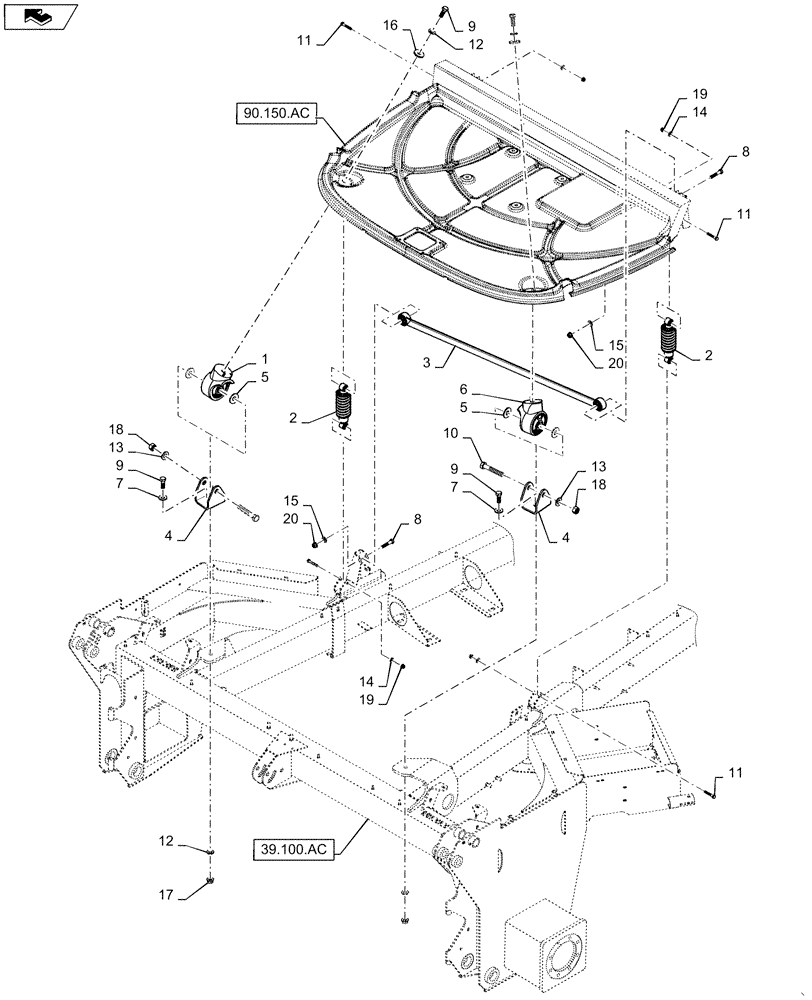

Схема запчастей Case IH WD1903 - (90.150.AJ) - SUSPENSION, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
18
20
20
home
12
6
13
11
9
9
8
19
2
17
12
11
7
5
15
14
14
15
3
39.100.ac
7
10
5
4
2
19
16
11
1
4
13
18
90.150.ac
9

Артикул

Название

Примечание

Количество

1

86638055

SUPPORT ASSY.

RH

1шт.

2

87367004

SHOCK ABSORBER

2шт.

3

84132288

STABILIZER BAR

1шт.

4

86638052

CHANNEL

2шт.

5

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

4шт.

6

86638054

SUPPORT ASSY.

1шт.

7

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

2шт.

8

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

9

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

10

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

2шт.

11

86575418

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

4шт.

12

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

13

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

15

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

16

333040

WASHER,16.5mm ID x 49mm OD x 6mm Thk

2шт.

17

86521608

FLANGE NUT,Flg, 5/8"-11, G5

2шт.

18

280954

NUT,3/4"-10, G5

2шт.

19

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

20

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

Выбрано товаров: 20
