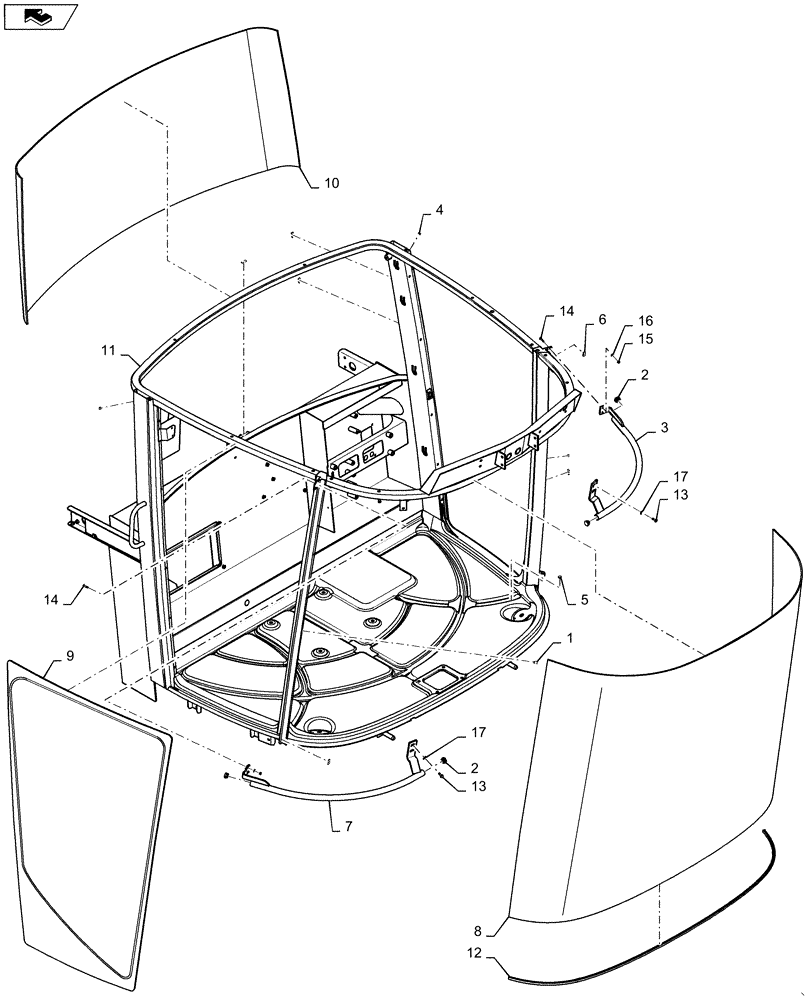

Запчасти Case IH WD1903 (90.150.AC) - FRAME, CAB, STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87106208

THREADED INSERT,M6

9шт.

2

87280507

PLUG,M21

4шт.

3

86636000

HANDRAIL

LH

1шт.

4

86001112

SPACER

Glass Mounting

44шт.

5

436173

PLUG

8шт.

6

87353028

INSULATOR BLOCK

23шт.

7

86635999

HANDRAIL

RH

1шт.

8

84059822

WINDSHIELD

Front

1шт.

9

87037142

GLASS

RH

1шт.

10

86629031

GLASS

Rear

1шт.

11

NSS

NOT SOLD SEPARAT

See Fig. 90.150.AB For Service Cab

1шт.

12

87012018

RUBBER WEATHERSTRIP

1шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

14

86017957

SCREW,Phillips Drive, Oval HD, M6 x 20mm, Cl 4.8

4шт.

15

9706755

NUT,M6, Cl 8

4шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.
