(90.124.AE) - SEAT, AIR SUSPENSION, DELUXE

Запчасти Case IH WD1903 (90.124.AE) - SEAT, AIR SUSPENSION, DELUXE (90) - PLATFORM, CAB, BODYWORK AND DECALS

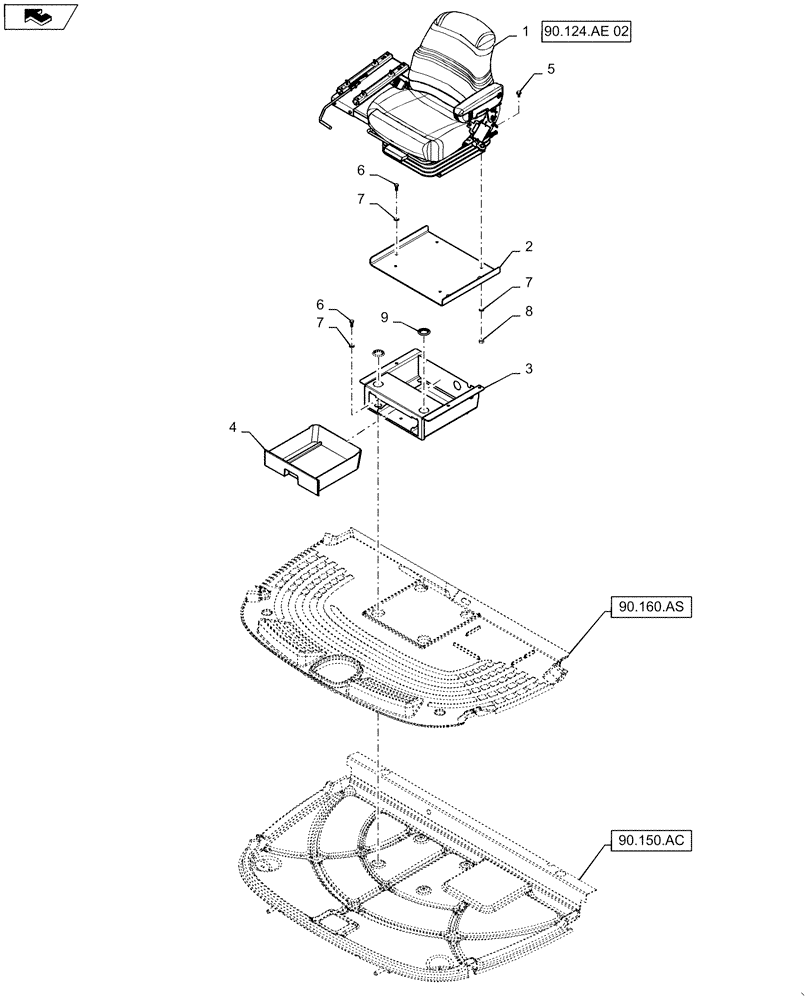

Схема запчастей Case IH WD1903 - (90.124.AE) - SEAT, AIR SUSPENSION, DELUXE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac
4
3
2
home
9
7
7
5
6
90.160.as
1
90.124.ae 02
8
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87042688

SEAT ASSY.

Cloth

1шт.

1

87758012

SEAT

Cloth

1шт.

2

84563187

PLATE

1шт.

3

84513178

SUPPORT

1шт.

4

87281323

HOLDER

1шт.

5

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

6

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

7шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

11шт.

8

100016

NUT,M10 x 1.5, Cl 8

4шт.

9

199676

BUTTON PLUG

2шт.
