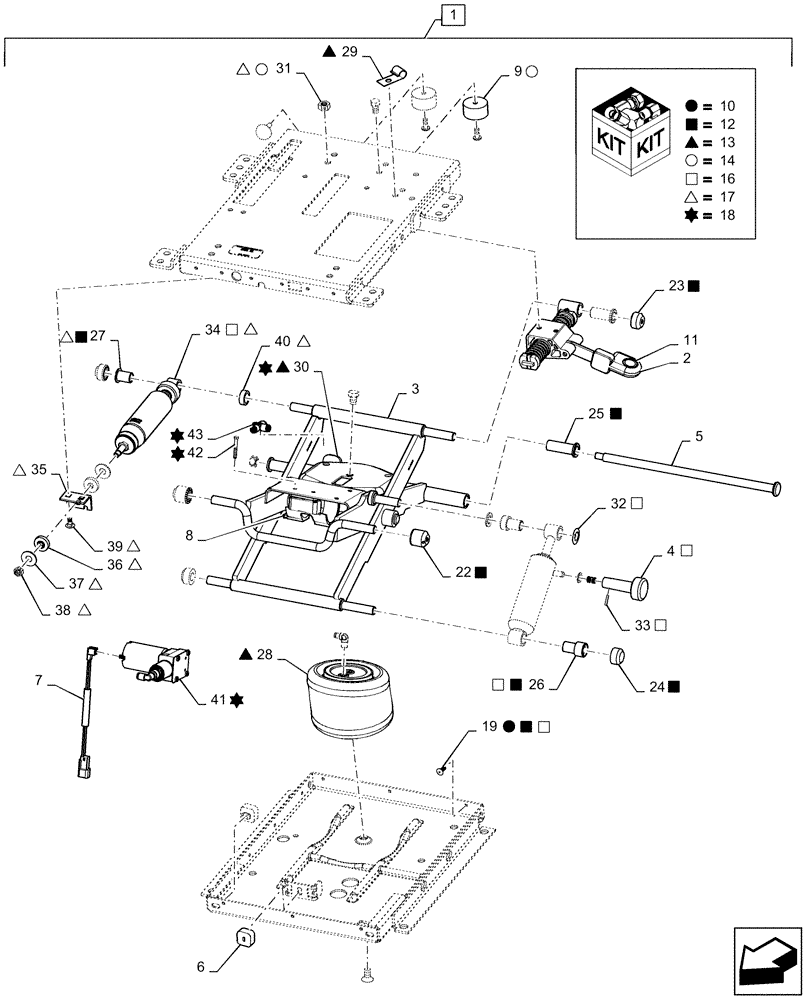

Запчасти Case IH WD1903 (90.120.BB) - SEAT SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87390388

KIT

Suspension Complete, Incl 1 - 21

1шт.

2

1990645C1

LATCH

Isolator

1шт.

3

1990643C1

FRAME ASSY

1шт.

4

87347974

SERVICE KIT

Seat Adjuster Damper

1шт.

5

143786A1

SHAFT,308.9mm L

Bearing

1шт.

6

276467

BUMPER

1шт.

7

87390389

WIRE HARNESS

1шт.

8

84263680

CLAMP

Compressor

1шт.

9

133422A1

BUMPER

Rubber

2шт.

10

87347962

SERVICE KIT

Boot Seat LPA, Incl 19

1шт.

11

87352581

SERVICE KIT

Seat Isolator Knob LPA

1шт.

12

87347967

BEARING ASSY

Seat Bearings, Incl 19, 22 - 27

1шт.

13

197793A1

SPRING

Air Spring, Incl 28 - 30

1шт.

14

180593A1

KIT

Bumpers, Incl 9, 20 - 21, 31

1шт.

15

87352578

SERVICE KIT

Air Line To Spring (Not Shown)

1шт.

16

87352579

SERVICE KIT

Shock Absorber, LPA, Incl 4, 19, 26, 32 - 34

1шт.

17

87352580

SERVICE KIT

Shock Absorber, Incl 27, 31, 34 - 40

1шт.

18

87608071

AIR COMPRESSOR KIT

Incl 30, 41 - 43

1шт.

19

87347976

SERVICE KIT

Seat Boot Clip, LPA, Component of Ref 12, 16

1шт.

20

231-1444

NUT,1/4"-20, GB

Not Shown

2шт.

21

340-12520

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

Not Shown

2шт.

22

NSS

NOT SOLD SEPARAT

Roller and Bearing Assembly, Component of Ref 12

2шт.

23

NSS

NOT SOLD SEPARAT

Narrow Roller Assembly - Delrin, Component of Ref 12

2шт.

24

NSS

NOT SOLD SEPARAT

Roller, Component of Ref 12

2шт.

25

NSS

NOT SOLD SEPARAT

Bearing Tube, Component of Ref 12

2шт.

26

NSS

NOT SOLD SEPARAT

Upper Shock Sleeve Bearing, Component of Ref 12, 16

1шт.

27

NSS

NOT SOLD SEPARAT

Shock Isolator Bushing, Component of Ref 12, 17

1шт.

28

NSS

NOT SOLD SEPARAT

Airspring, Component of Ref 13

1шт.

29

NSS

NOT SOLD SEPARAT

"J" Clip, Componet of Ref 13

1шт.

30

NSS

NOT SOLD SEPARAT

Cable Tie, Componet of Ref 13, 18

3шт.

31

NSS

NOT SOLD SEPARAT

Centerlock Nut, Component of Ref 14, 17

4шт.

32

NSS

NOT SOLD SEPARAT

Internal Tooth Retainer, Component of Ref 16

1шт.

33

NSS

NOT SOLD SEPARAT

Roll Pin, Component of Ref 16

1шт.

34

NSS

NOT SOLD SEPARAT

Shock Absorber, Component of Ref 16, 17

1шт.

35

NSS

NOT SOLD SEPARAT

Shock Mounting Angle, Component of Ref 17

1шт.

36

NSS

NOT SOLD SEPARAT

Bushing, Component of Ref 17

2шт.

37

NSS

NOT SOLD SEPARAT

Flat Washer, Component of Ref 17

2шт.

38

NSS

NOT SOLD SEPARAT

Centerlock Nut, Component of Ref 17

1шт.

39

NSS

NOT SOLD SEPARAT

Carriage Bolt, Component of Ref 17

2шт.

40

NSS

NOT SOLD SEPARAT

Spacer, Component of Ref 17

1шт.

41

NSS

NOT SOLD SEPARAT

12V Compressor Assembly, Component of Ref 18

1шт.

42

NSS

NOT SOLD SEPARAT

Slotted Hex Head Flange Bolt, Component of Ref 18

2шт.

43

NSS

NOT SOLD SEPARAT

Elbow, Component of Ref 18

1шт.
