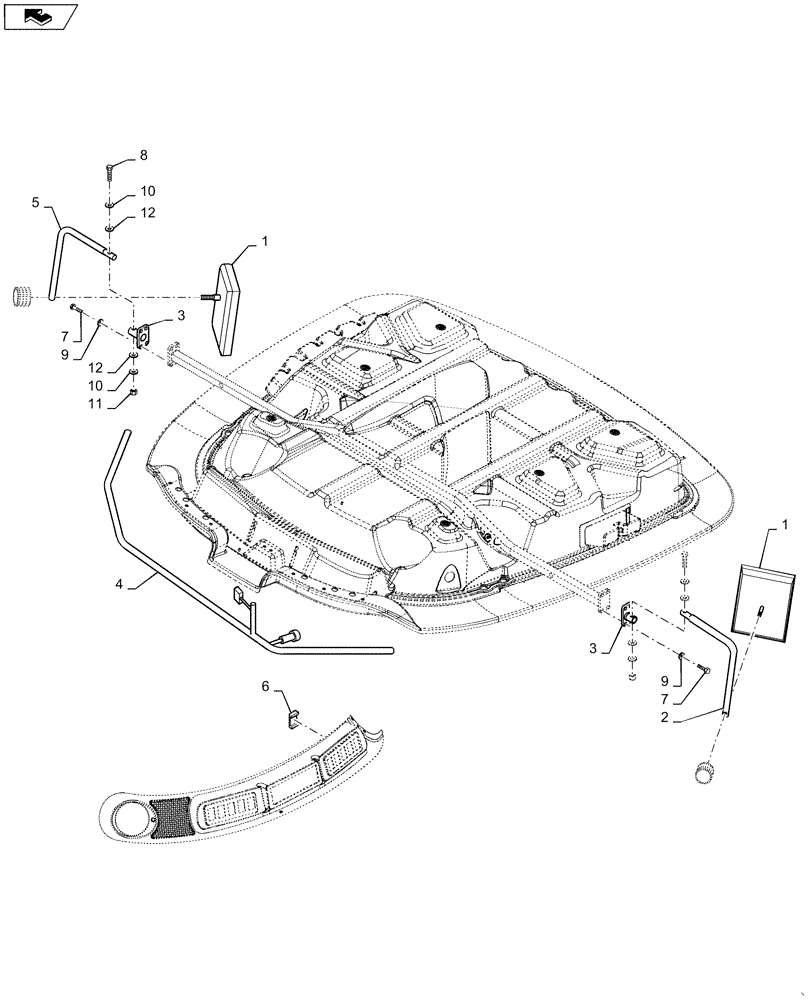

Запчасти Case IH WD1903 (90.118.BM[02]) - MIRROR, STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

82014587

REAR VIEW MIRROR

Glass Is NSS From Mirror

2шт.

2

87020175

SUPPORT ASSY.

LH

1шт.

3

87020173

PLATE

2шт.

4

84515762

WIRE HARNESS

Wiper Motor, Left And Right Work/Road Lamps

1шт.

5

87024929

SUPPORT ASSY.

RH

1шт.

6

86533310

PLUG

Blank

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

8

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

12

394629

WASHER,10.5mm ID x 24mm OD x 3mm Thk

4шт.
