Запчасти Case IH WD1903 (88.100.90[03]) - DIA KIT, ADDITIONAL PRODUCTS, SPEAKER, DELUXE (88) - ACCESSORIES

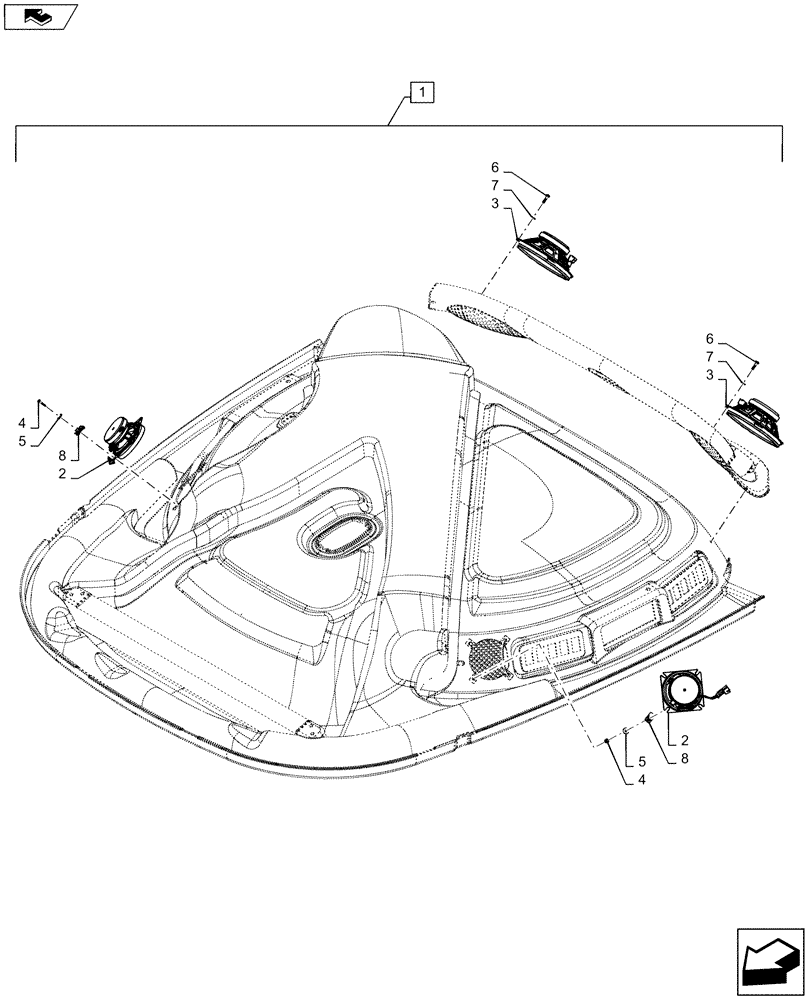

Схема запчастей Case IH WD1903 - (88.100.90[03]) - DIA KIT, ADDITIONAL PRODUCTS, SPEAKER, DELUXE (88) - ACCESSORIES
7
3
6
8
4
2
5
6
4
3
home
2
5
7
8
1

Артикул

Название

Примечание

Количество

1

84081897

DIA KIT, HARVESTER

Premium Speakers, Incl 2 - 8

1шт.

2

86572627

SPEAKER

Front

2шт.

3

86520822

SPEAKER

Rear

2шт.

4

86511824

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8

8шт.

5

335872

WASHER,4.1mm ID x 15mm OD x 1.6mm Thk

8шт.

6

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

8шт.

7

140014

WASHER,M5 x 10mm OD x 1mm Thk

8шт.

8

9628100

NUT,M4 x 0.7

8шт.

Выбрано товаров: 8
