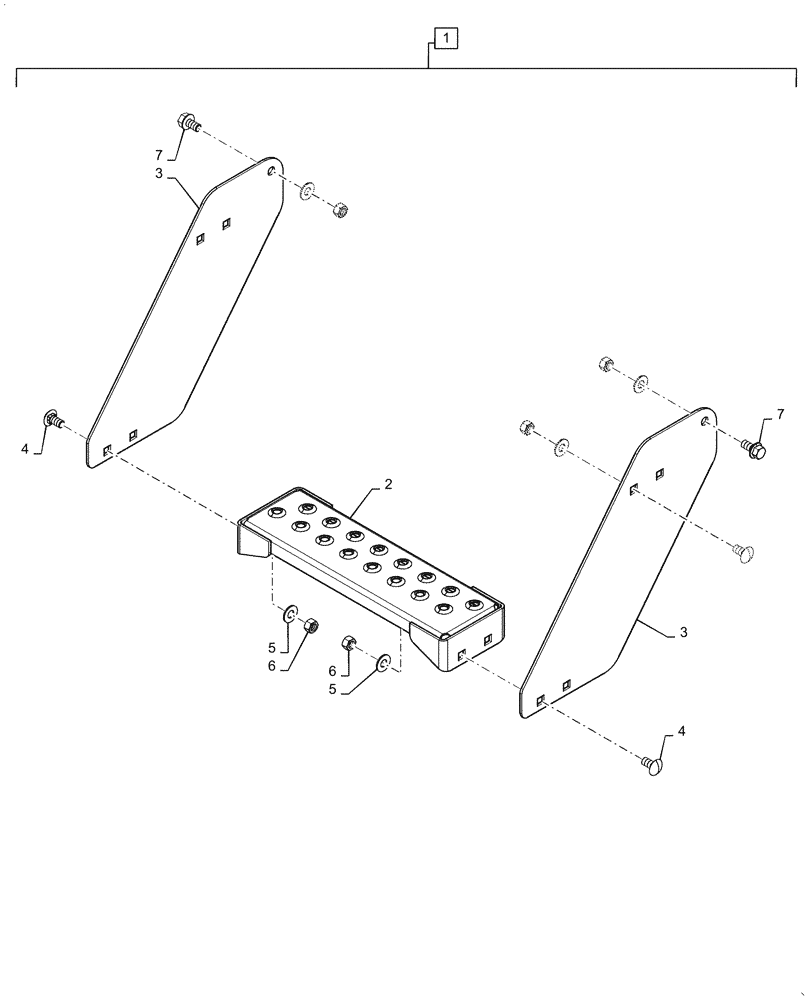

Запчасти Case IH WD1903 (88.100.58[10]) - DIA, KIT, LADDER EXTENSION (88) - ACCESSORIES

1

47601167

KIT

Ladder Extension, Incl 2 - 7

1шт.

1

47601166

KIT

Ladder Extension, Incl 2 - 7

1шт.

2

47601531

STEP

Single

1шт.

2

87026387

STEP

Single

1шт.

3

47601083

SUPPORT

Ladder Extension

2шт.

3

47601163

SUPPORT

Ladder Extension

2шт.

4

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

8шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

6

9628503

NUT,3/8"-16, G5

10шт.

7

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.
