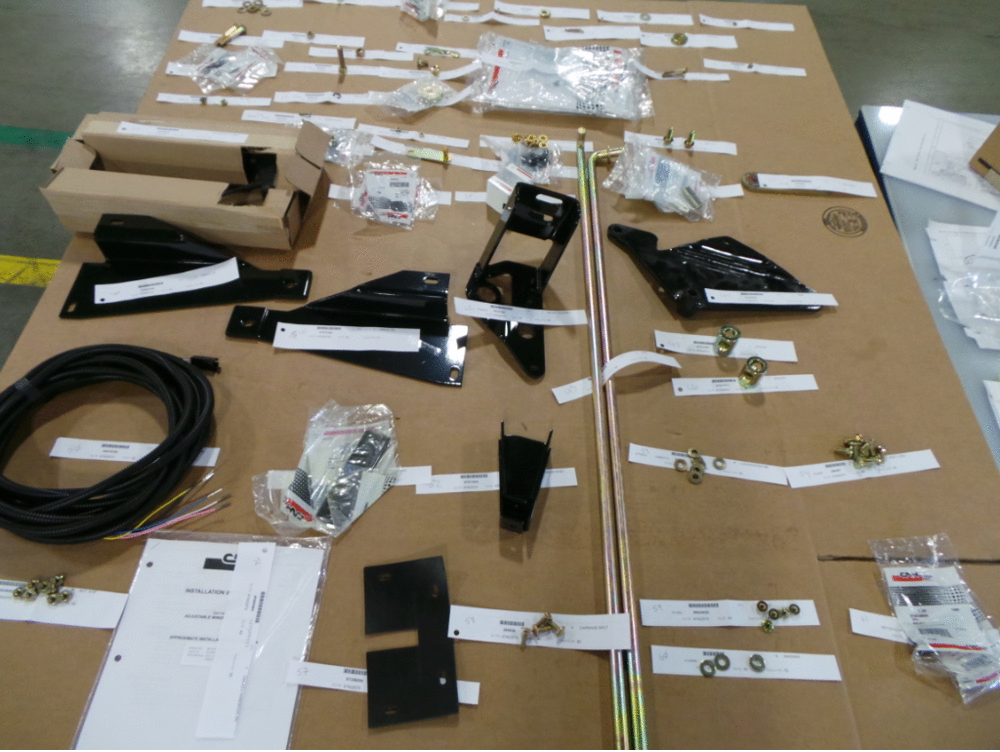

Запчасти Case IH WD1903 (88.100.58[05]) - DIA KIT, ADJUSTABLE WINDROW SHEILDS (CONT.) (88) - ACCESSORIES

1

47422570

SERVICE KIT

Adjustable Windrow Shields Incl 2 - 33

1шт.

2

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

1шт.

3

86635011

BUSHING

1шт.

4

86974816

SHAFT

1шт.

5

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

1шт.

6

87010516

ACTUATOR

Linear

1шт.

7

87020989

SPACER

Plated

2шт.

8

87023839

WINDSHIELD WIPER SWI

Windrow Shield

1шт.

9

87024378

SPACER

3шт.

10

87056981

DRAG LINK

Incl 11 - 13

1шт.

11

9808450

BALL BEARING,12mm ID x 32mm OD x 10mm W

1шт.

12

87056835

DRAG LINK

1шт.

13

9847562

BALL BEARING,9.99mm ID x 30mm OD x 9mm W

1шт.

14

87031545

ANGLE

LH

1шт.

15

87031546

ANGLE

RH

1шт.

16

87031547

MOUNTING PARTS

1шт.

17

87031550

ROD

2шт.

18

47504938

ARM

Incl 19

1шт.

19

782455

DRIVE BUSHING

2шт.

20

87031553

SPACER

1шт.

21

87031873

SPACER

1шт.

22

84515766

WIRE HARNESS

WS

1шт.

23

849495

RUBBER PAD

2шт.

24

87571594

STOP

Windrow Shield

2шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

26

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

27

9635082

NUT,5/16" - 18, Gr 5

8шт.

28

47507051

SERVICE KIT

Instruction

1шт.

29

87358009

SEAL

1шт.

30

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

4шт.

31

86624020

FLANGE NUT,Flg, 1/4"-20.G5

4шт.

32

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

33

86509590

RELAY

20 Amp

2шт.
