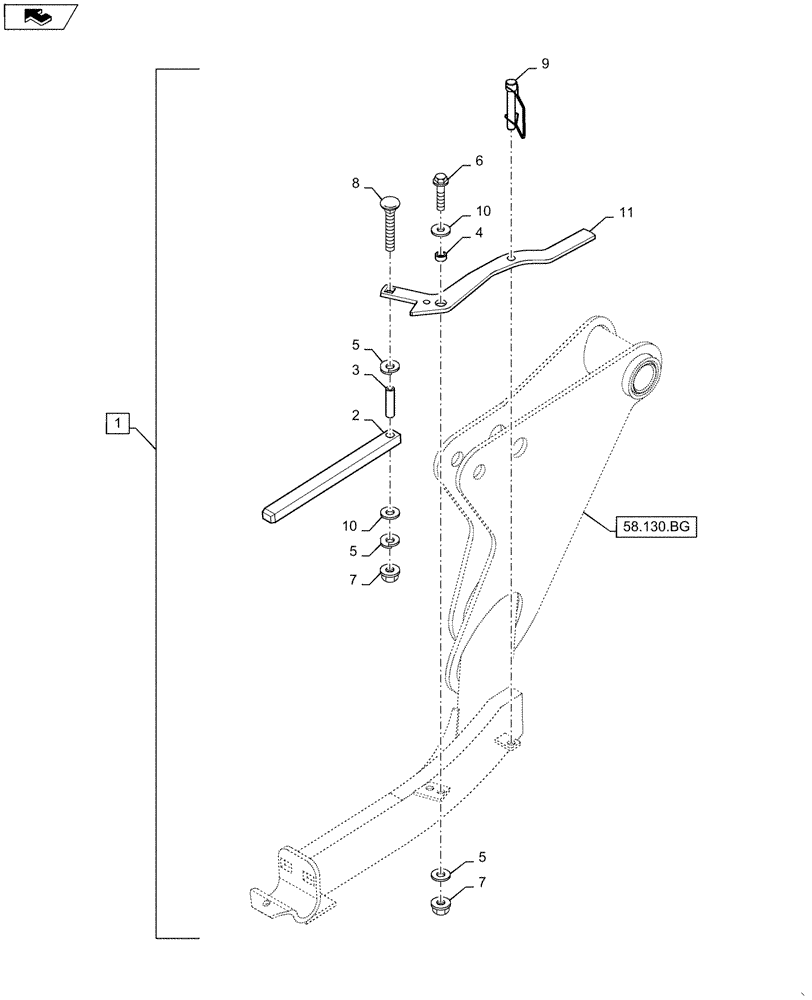

Запчасти Case IH WD1903 (88.100.58[01]) - DIA, LATCH HOOK, HEADER 6 CYLINDER (88) - ACCESSORIES

1

84598213

KIT

Header Quick Latch, Incl 2 - 11

1шт.

2

87011324

LOCK PIN

2шт.

3

87042678

SPACER

2шт.

4

646056

SPACER,13/32” ID x .750” OD x .338” Tk.

2шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

6

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

8

80280806

SCREW

2шт.

9

86837801

PIN,7.93mm OD x 44.45mm L

2шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

11

87569777

HANDLE

2шт.
