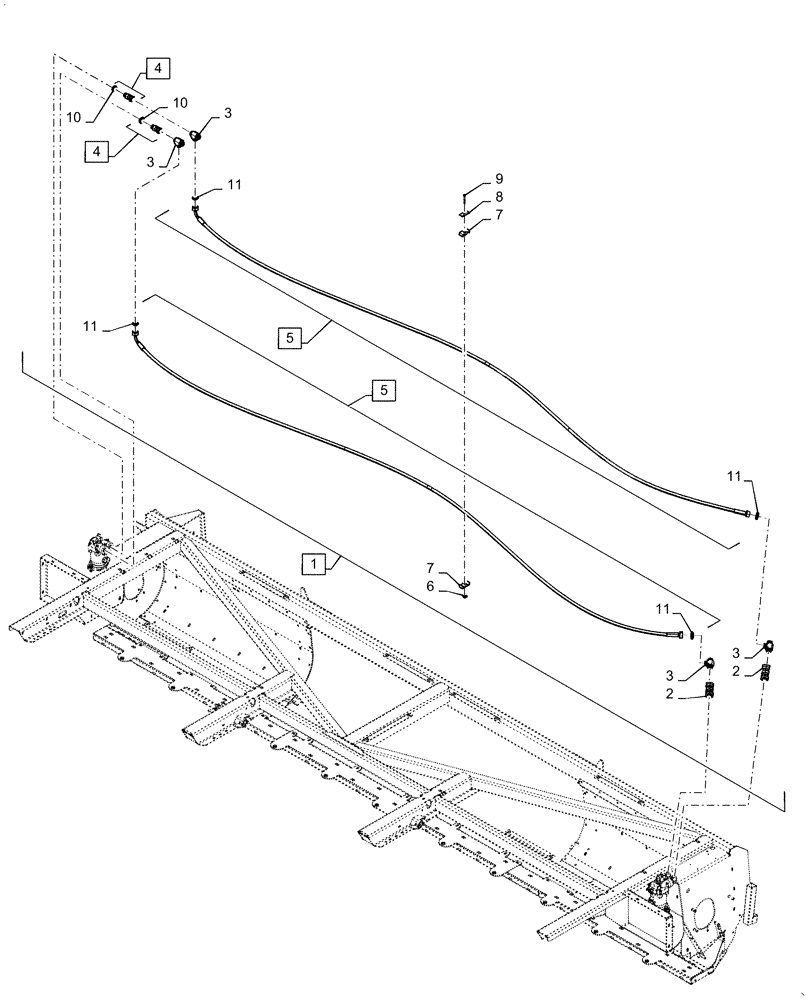

Запчасти Case IH WD1903 (88.100.35[05]) - DIA KIT,, DISC HEADER HYD CROSSOVER (88) - ACCESSORIES

1

439139006

SERVICE KIT

1шт.

1

47522054

SERVICE KIT

Incl 2 - 9

1шт.

2

84246764

UNION

3/4 ORFS Swivel

2шт.

3

87359490

UNION

Tee

4шт.

4

87485024

HYD CONNECTOR

Swivel, Incl 10

2шт.

5

47522053

HOSE

Assy, Crossover, Incl 11

2шт.

6

9626645

NUT

5/16

3шт.

7

1589857

CLAMP

2-Hole

3шт.

8

87000230

PLATE

3шт.

9

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

3шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
