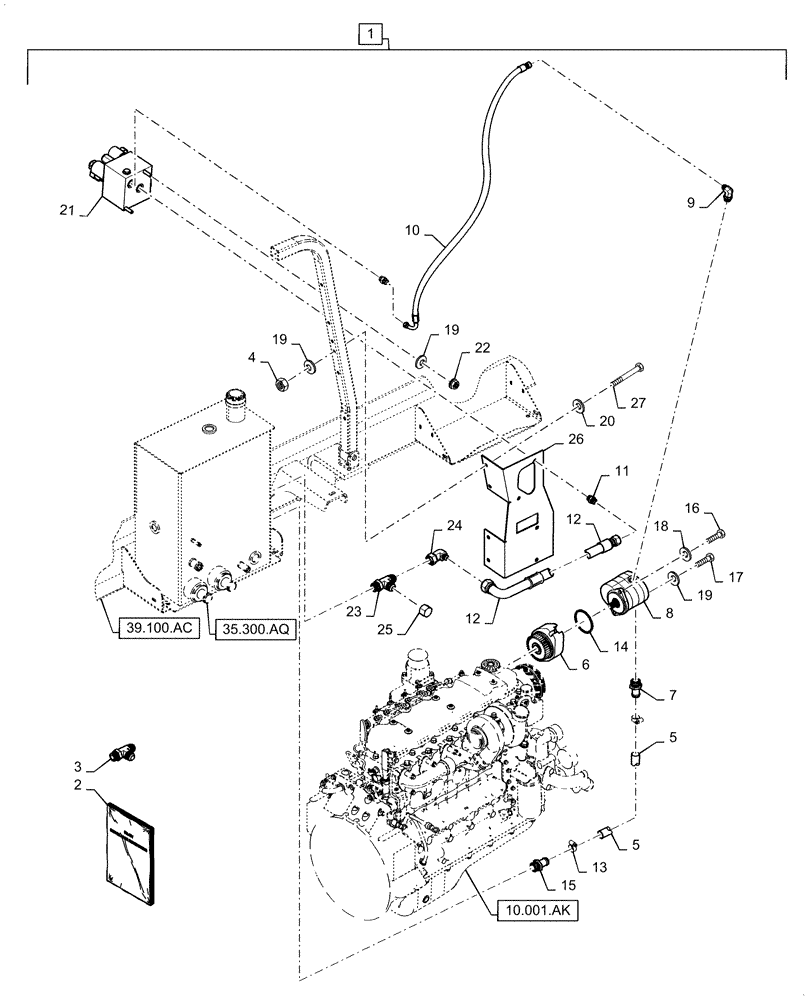

Запчасти Case IH WD1903 (88.100.35[03]) - DIA, HYDRAULIC MERGER (88) - ACCESSORIES

1

47504583

KIT

Merger, Incl 2 - 27

1шт.

2

47511369

INSTRUCTION

Instruction

1шт.

3

86513017

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1шт.

4

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

5

87032237

HOSE,1.00" ID x 44.00", SAE 100R4

1шт.

6

84272202

PTO

1шт.

7

87027931

NIPPLE

1шт.

8

87050689

HYDRAULIC PUMP,22.8 CC

1шт.

9

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

1шт.

10

84130833

HOSE

1шт.

11

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

12

84130830

HOSE

1шт.

13

86536660

HOSE CLAMP,25mm - 44mm

2шт.

14

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

15

47503592

FITTING

1шт.

16

86511099

HEX SOC SCREW,M12 x 50mm, Cl 12.9, Full Thd

2шт.

17

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

20

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

21

84231477

CONTROL VALVE

1шт.

22

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

23

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

24

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

25

219606

CAP,1-1/16" - 12 JIC

1шт.

26

47495079

BRACKET

1шт.

27

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.
