Запчасти Case IH WD1903 (88.100.10[02]) - DIA, COLD START KIT 6 CYLINDER (88) - ACCESSORIES

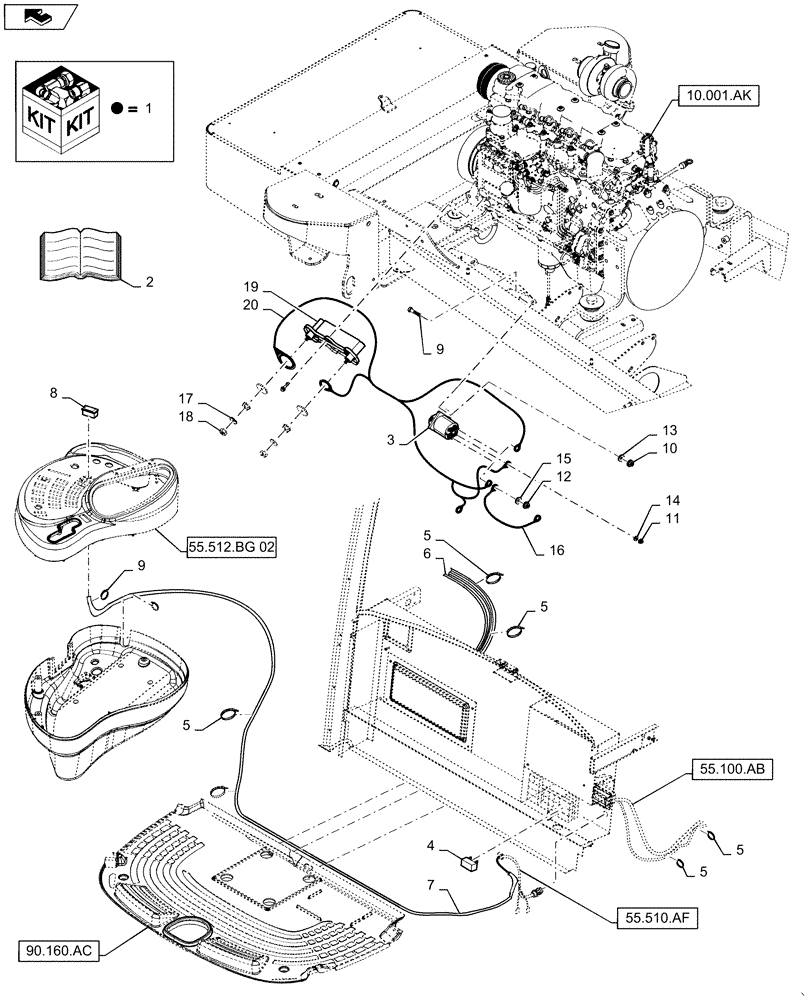

Схема запчастей Case IH WD1903 - (88.100.10[02]) - DIA, COLD START KIT 6 CYLINDER (88) - ACCESSORIES
19
2
1
9
12
4
3
18
17
5
16
11
home
6
8
55.510.af
1
5
20
5
90.160.ac
14
10
7
55.100.ab
5
55.512.bg 02
13
10.001.ak
5
15
9

Артикул

Название

Примечание

Количество

1

87629024

DIA KIT, HARVESTER

6 Cylinder Cold Start, Incl 2 - 20

1шт.

2

84578399

OPERATOR MANUAL

Instruction, 6 Cyl Cold Start

1шт.

3

87406968

SOLENOID SWITCH

Switch

1шт.

4

86509590

RELAY

20 Amp

1шт.

5

86566989

CABLE TIE,208mm L

15шт.

6

87389493

WIRE HARNESS

Grid Heater To Cab Passthrough

1шт.

7

87041200

HARNESS

Console to Cab Passthrough

1шт.

8

86631307

SWITCH

Warming Rocker

1шт.

9

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

10

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

87825

NUT,#10-32

2шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

15

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

16

87389492

POS BATTERY CABLE

Positive

1шт.

17

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

18

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

19

87541231

UNIT HEATER

Grid Heater

1шт.

20

87389491

CABLE

Grid Heater Harness

1шт.

Выбрано товаров: 20
