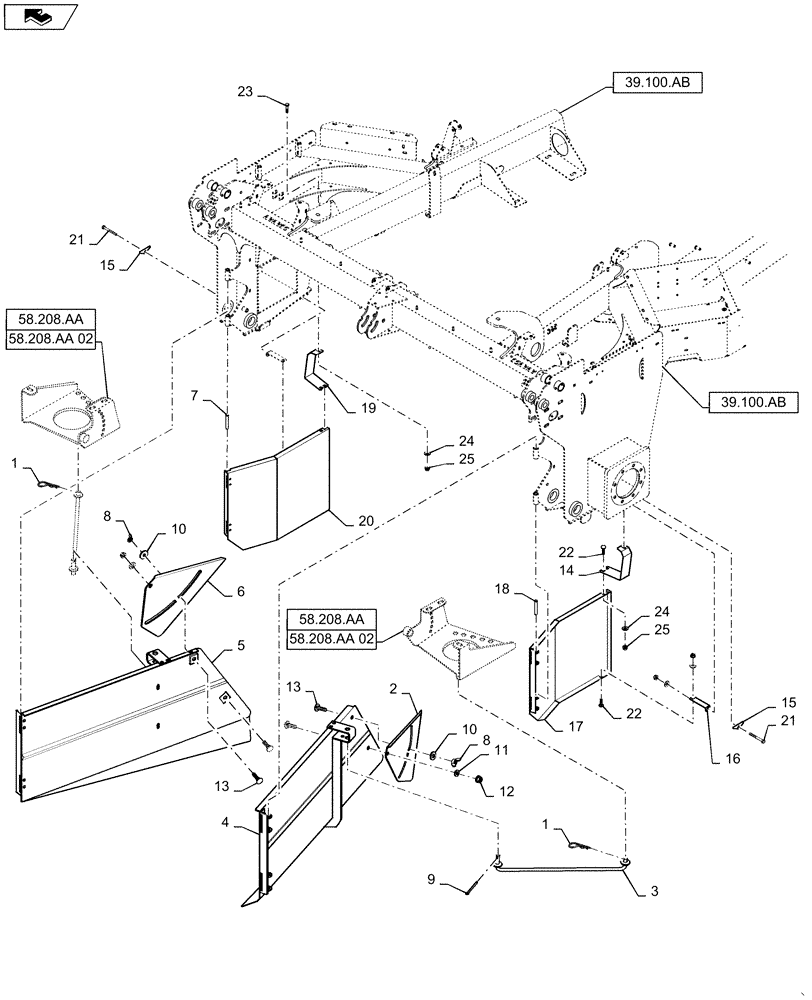

Запчасти Case IH WD1903 (58.209.AA) - SHIELD, FINAL DRIVE (58) - ATTACHMENTS/HEADERS

1

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

2

87040156

EXTENSION

LH Dark Gray

1шт.

3

87031534

ROD ASSY.

2шт.

4

84390185

SHIELD

LH, Dark Gray

1шт.

4

84390183

SHIELD

LH, NH Red

1шт.

5

84390177

SHIELD

RH, Dark Gray

1шт.

5

84390176

SHIELD

RH, NH Red

1шт.

6

87040157

EXTENSION

Dark Gray

1шт.

7

86516749

GUIDE PIN,11.15mm OD x 92.9mm L

4шт.

8

86636511

WING NUT

2шт.

9

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

2шт.

10

136443

WASHER,10.32mm ID x 57.15mm OD x 4.8mm Thk

2шт.

11

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

12

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

13

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

14

87594936

SUPPORT

LH

1шт.

15

87594935

LOCKING TAB

2шт.

16

87631729

BRACKET

2шт.

17

87613787

SHIELD

LH, Dark Gray

1шт.

18

86516749

GUIDE PIN,11.15mm OD x 92.9mm L

4шт.

19

87594937

SUPPORT

RH

1шт.

20

87613788

SHIELD

RH

1шт.

21

280177

BOLT,Hex, 3/8" - 16 x 5", Gr 5

1шт.

22

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

6шт.

23

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

25

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

10шт.
