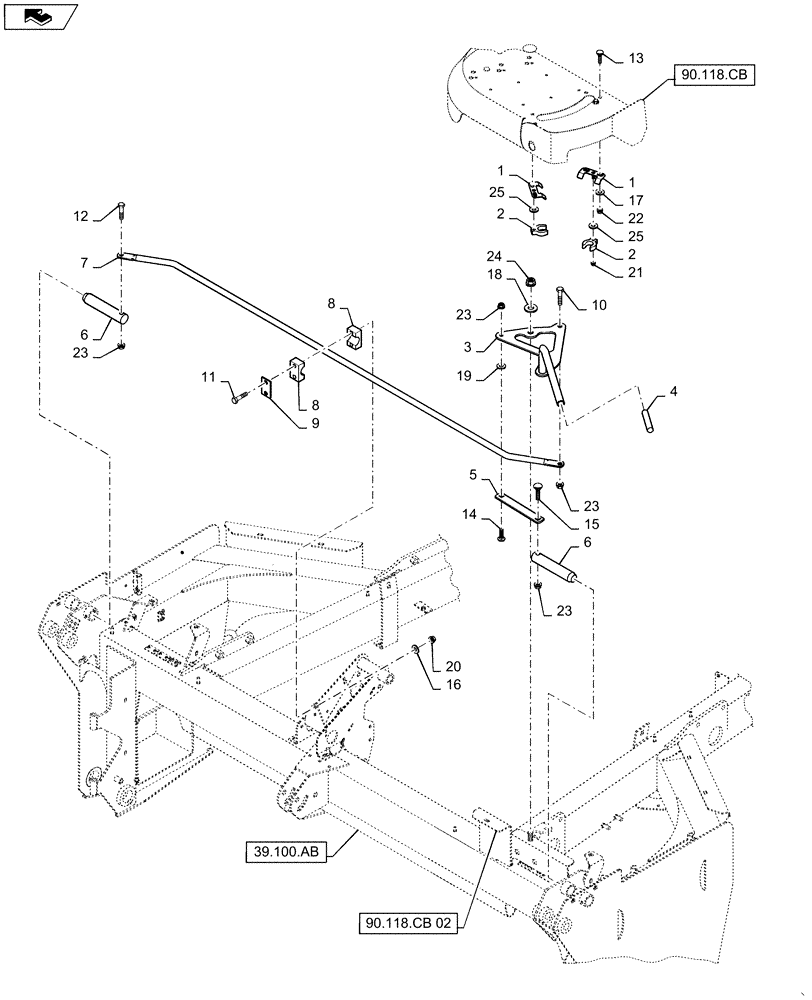

Запчасти Case IH WD1903 (58.130.BG[02]) - LATCH HOOK, HEADER (58) - ATTACHMENTS/HEADERS

1

87011266

CLIP

2шт.

2

9620139

CLIP

2шт.

3

87027917

HANDLE

Red

1шт.

4

602734

HANDLE GRIP

1шт.

5

87022883

STRAP

1шт.

6

86623295

SHAFT

2шт.

7

87011479

TUBE,21.34 mm OD

1шт.

8

87022323

CLAMP,25.4mm D Clamping Pipe

1шт.

9

86900727

COVER

1шт.

10

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

11

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

2шт.

12

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

13

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

14

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

1шт.

15

280514

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

1шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

18

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

19

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

Use As Required

3шт.

20

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

21

9823743

FLANGE NUT,Flg, 5/16"-18

2шт.

22

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

23

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

24

86521611

FLANGE NUT,Flg, 5/8"-11

1шт.

25

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.
