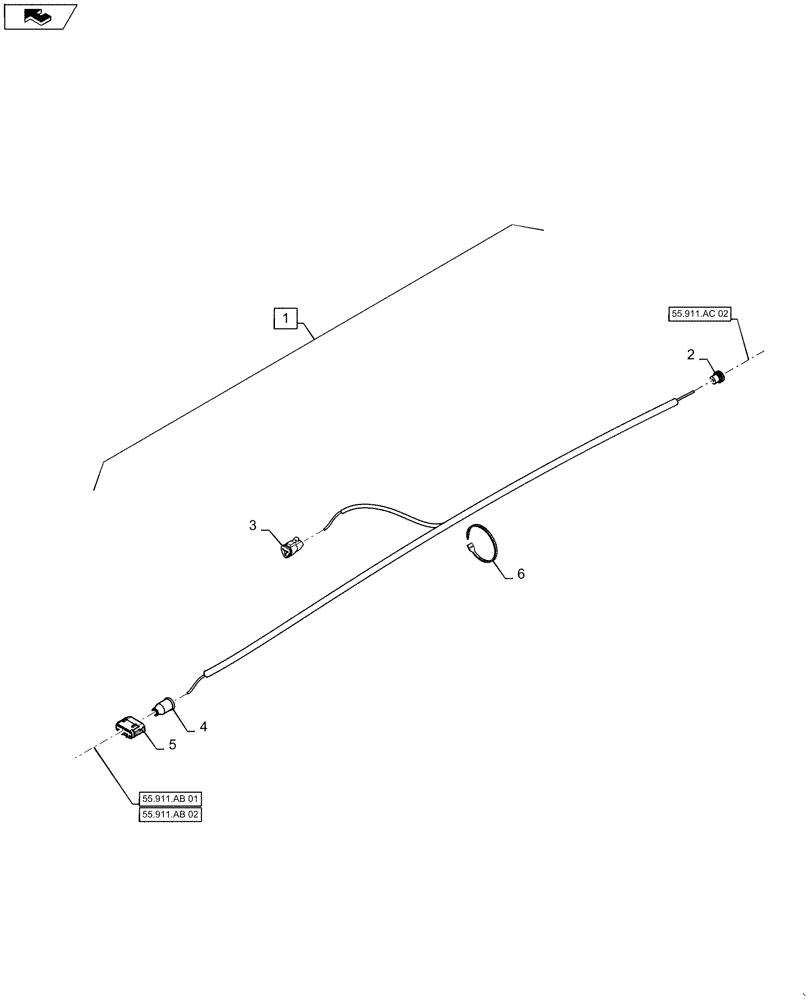

Запчасти Case IH WD1903 (55.911.AC[03]) - WIRE HARNESS, "GA" GPS RECEIVER (55) - ELECTRICAL SYSTEMS

1

84515788

WIRE HARNESS

"GA", Roof Junction to GPS Receiver

1шт.

2

15326840

Connector, DGPS Roof, X-499

1шт.

2

388686A1

CONNECTOR, ELEC

Terminal, DGPS Roof, X-499

8шт.

2

87698531

RUBBER SEAL

Seal, Blue, DGPS Roof, X-499

8шт.

3

87695580

ELEC CONNECTOR,Female, 3 Pole

R-004 Can Termination Resistor, X-122

1шт.

3

84058194

PLUG

R-004 Can Termination Resistor, X-122

1шт.

3

84058092

CONTACT HOUSING,120 Ohm Resistor

R-004 Can Termination Resistor, X-122

1шт.

3

84068583

PLUG,12 - 16 Ga, White

R-004 Can Termination Resistor, X-122

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

R-004 Can Termination Resistor, X-122

2шт.

4

9512560

GROMMET

Seal Cap

1шт.

5

87700156

CONTACT HOUSING,Female, 12 Pole

A-009 Module, Antenna, X-026

1шт.

5

87705198

WEDGE

A-009 Module, Antenna, X-026

1шт.

5

87700155

ELEC CONNECTOR,Female, 12 Cavities

A-009 Module, Antenna, X-026

1шт.

5

84807680

PLUG

A-009 Module, Antenna, X-026

4шт.

5

84322203

CLIP

A-009 Module, Antenna, X-026

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Terminal, A-009 Module, Antenna, X-026

8шт.

6

86566989

CABLE TIE,208mm L

1шт.
