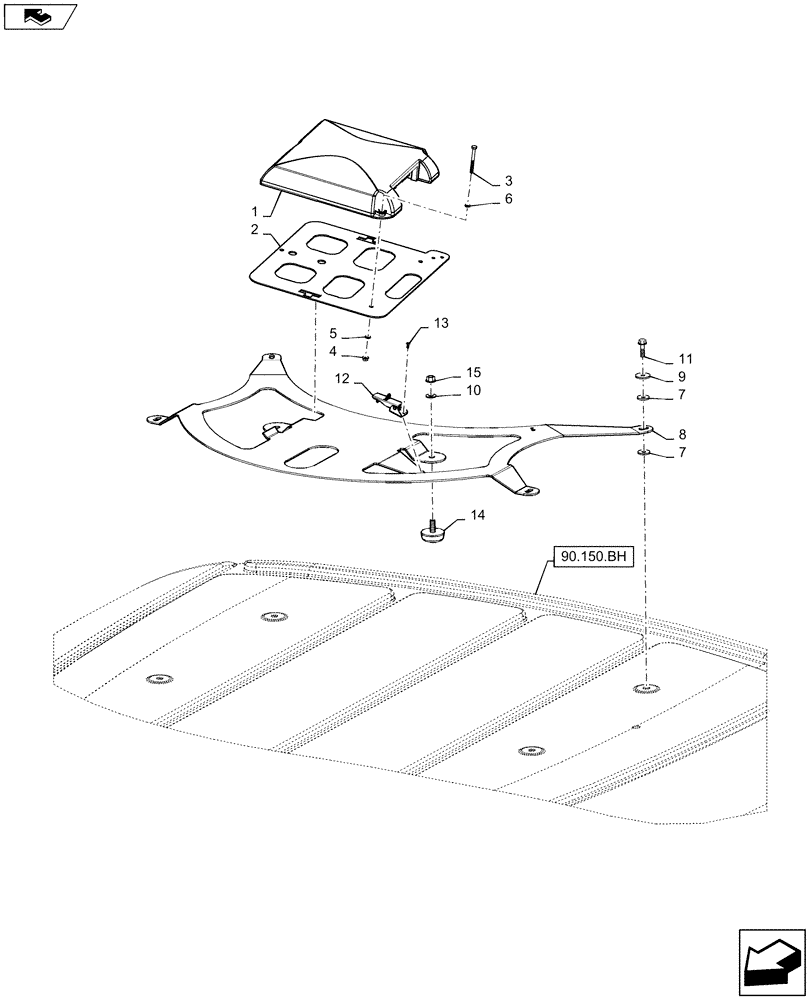

Запчасти Case IH WD1903 (55.911.AB[01]) - GPS RECEIVER ANTENNA & MOUNTING PARTS, WAAS (55) - ELECTRICAL SYSTEMS

1

84574275

GPS RECEIVER

PLM 372, WAAS

1шт.

1

84574275R

REMAN ELECT CONTROL

SPEEDROWER 130, SPEEDROWER 200, SPEEDROWER 240, All WINDROWER (NA), PLM 372, WAAS (12/13-)

1шт.

1

84574275C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

84574271

GPS RECEIVER

AFS 372, WAAS

1шт.

1

84574271R

REMAN ELECT CONTROL

WD1903, WD1203, WD2303, All WINDROWER (NA), AFS 372, WAAS(12/13-)

1шт.

1

84574271C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

87496985

MOUNTING PLATE

GPS

1шт.

3

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

4

86511444

FLANGE NUT,Hex, M6 x 1

3шт.

5

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

7

87026367

RUBBER WASHER

8шт.

8

84401758

SUPPORT

GPS Roof Mounting

1шт.

9

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

4шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

11

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

12

87308870

LATCH

Latch, Undercenter With Padlock Hasp

1шт.

13

425520

RIVET,Pop, 3.96mm OD x 10.4mm L

2шт.

14

190029

STOP,M10 x 1.0 x 20mm OD, Rubber

2шт.

15

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.
